Item: G0578 | Model: G0578

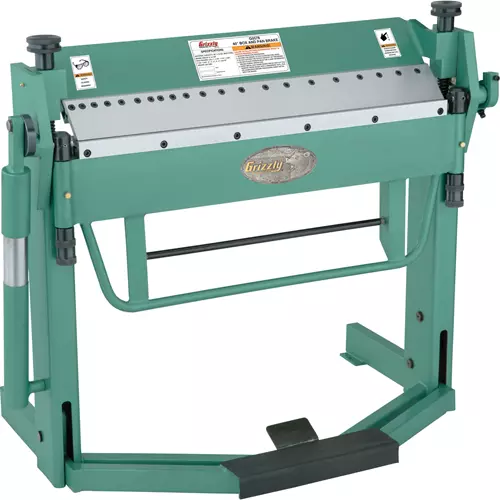

Grizzly G0578 - 40" Pan & Box Brake
Bend 12 gauge mild steel up to 40" wide or use the various sized box fingers to make bent tabs. A foot operated clamping beam locks the workpiece in place and a hand operated brake handle bends any angle up to 135°. A great addition to any sheet metal shop!
Features:
- Foot operated clamping beam with automatic lock and pedal release
- Eccentric cam actuated brake handle
- Adjustable clamping bar height
- 12 various sized box fingers
Specifications:
- Maximum capacity: 40" Gauge: 12 gauge mild steel Maximum clamping beam lift: 1-3/4" Maximum bending angle: 135° Box finger sizes: 1", 1-1/8", 1-1/4", 1-3/8", 1-1/2", 1-3/4", 2", 3", 4", 5", 8" and 1 Overall size: 53" W x 45" H x 32-1/2" D Footprint: 46-1/2" W x 32-1/2" D Approximate shipping weight: 627 lbs.
