Item: G8177 | Model: G8177
Image for G8177

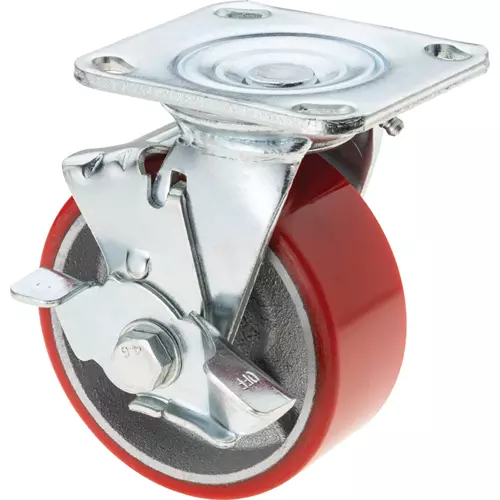

Grizzly G8177 - 5" Heavy-Duty Swivel Caster w/ Brake

4.6 (24)
5
20
4
2
2
1
1
1
$40.95

G8177 5" Heavy-Duty Swivel Caster with Brake

This heavy-duty 360 degree swivel caster has an injection molded polyurethane elastomer tire surface.

Polyurethane is hard wearing, handles high loads, and will not mark the floor.

The foot operated pedal seats the steel friction pad against the outer diameter of the wheel, holding it in place until you turn it loose with a flick of the toe.

Grease fittings for the swivel and the wheel bearing makes maintenance easy.

  • Size: 5" Swivel
  • Width: 2"
  • Capacity: 600 lbs.
  • Mounting Plate Dimension: 4.49" x 3.94"
  • Distance Between Holes: 3.46" x 2.95"
  • Height to Mounting Plate: 6.30"
  • View More Details
    Shipping
    Overview

    G8177 5" Heavy-Duty Swivel Caster with Brake

    This heavy-duty 360 degree swivel caster has an injection molded polyurethane elastomer tire surface.

    Polyurethane is hard wearing, handles high loads, and will not mark the floor.

    The foot operated pedal seats the steel friction pad against the outer diameter of the wheel, holding it in place until you turn it loose with a flick of the toe.

    Grease fittings for the swivel and the wheel bearing makes maintenance easy.

  • Size: 5" Swivel
  • Width: 2"
  • Capacity: 600 lbs.
  • Mounting Plate Dimension: 4.49" x 3.94"
  • Distance Between Holes: 3.46" x 2.95"
  • Height to Mounting Plate: 6.30"
