Item: G8169 | Model: G8169
Image for G8169

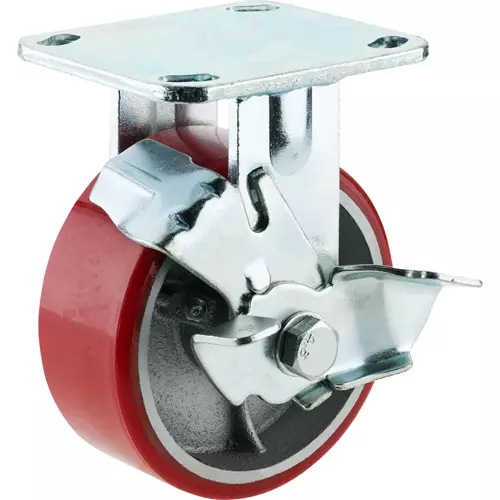

Grizzly G8169 - 5" Heavy-Duty Fixed Caster w/ Brake

3.0 (3)
5
1
3
1
1
1
$29.95

G8169 5" Heavy-Duty Fixed Caster with Brake

This heavy-duty wheel has an injection molded polyurethane elastomer tire surface.

Polyurethane is hard wearing, handles high loads, and will not mark the floor.

The foot operated pedal seats the steel friction pad against the outer diameter of the wheel, holding it in place until you turn it loose with a flick of the toe.

The caster has roller bearings which can be re-greased using the grease fitting.

  • Size: 5" Fixed
  • Width: 2"
  • Capacity: 600 lbs.
  • Mounting Plate Dimension: 4.49" x 3.94"
  • Distance Between Holes: 3.46" x 2.95"
  • Height to Mounting Plate: 6.30"
  • View More Details
    Shipping
    Overview

    G8169 5" Heavy-Duty Fixed Caster with Brake

    This heavy-duty wheel has an injection molded polyurethane elastomer tire surface.

    Polyurethane is hard wearing, handles high loads, and will not mark the floor.

    The foot operated pedal seats the steel friction pad against the outer diameter of the wheel, holding it in place until you turn it loose with a flick of the toe.

    The caster has roller bearings which can be re-greased using the grease fitting.

  • Size: 5" Fixed
  • Width: 2"
  • Capacity: 600 lbs.
  • Mounting Plate Dimension: 4.49" x 3.94"
  • Distance Between Holes: 3.46" x 2.95"
  • Height to Mounting Plate: 6.30"
  • Specifications & Comparisons
