Item: H6233 | Model: H6233

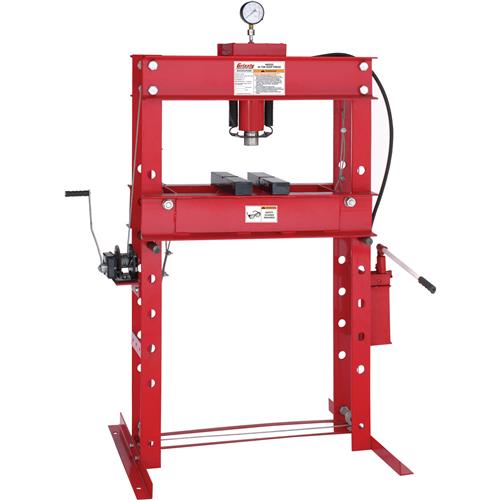

For your toughest shop pressing needs, this 50 Ton Shop Press does it all. Has a built-in pressure gauge~provides exact pressure readings. A hand operated winch raises and lowers the bed, which can be adjusted to any of 6 locations spaced 5-7/8" along its massive steel frame.
Specifications:
- Working height: 2'' min. to 27'' max.
- Stroke length: 8-7/8''
- Ram diameter: 2-1/2"
- Bed support bars: 1-1/4'' diameter
- Bed adjustment holes: 6 holes, 5-7/8" on center
- Bed dimensions: 32" wide x 15" deep
- Overall dimensions: 44-1/2''W x 31-1/2''D x 73-3/4''H
- Includes 2 arbor plates
- Approximate shipping weight: 686 lbs.
