Item: H6233Z | Model: H6233Z

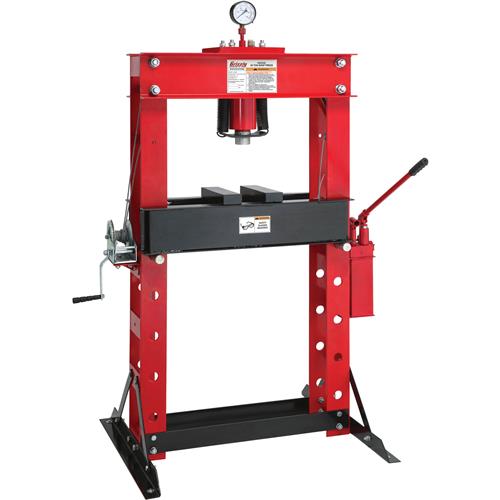

Grizzly H6233Z - 50 Ton Shop Press
For your toughest shop pressing needs, this 50 Ton Shop Press does it all. A hydraulic hand pump operates the ram and the built-in pressure gauge provides exact pressure readings. A hand-operated winch raises and lowers the bed, which can be adjusted to any of 6 locations spaced 6-5/16" along its massive steel frame.
Specifications:
Specifications:
- Working height: 3/4'' min. to 32-5/16'' max.
- Stroke length: 6-11/16''
- Ram diameter: 2-1/2"
- Bed support bars: 1-3/8'' dia.
- Bed adjustment holes: 6 holes, 6-5/16" on center
- Bed dimensions: 25-1/2" wide x 12-3/16" deep
- Overall dimensions: 49'' W x 38'' D x 72'' H
- Shipping dimensions: 74" W x 36" D x 18" H
- Includes 2 arbor plates
- Approximate shipping weight: 625 lbs.
Actions for Products including purchasing, availability and wishlist
Accessories and Related Products
Frequently Purchased With
-
-
-
-
-
Product detail tabs
Overview
For your toughest shop pressing needs, this 50 Ton Shop Press does it all. A hydraulic hand pump operates the ram and the built-in pressure gauge provides exact pressure readings. A hand-operated winch raises and lowers the bed, which can be adjusted to any of 6 locations spaced 6-5/16" along its massive steel frame.
Specifications:
Specifications:
- Working height: 3/4'' min. to 32-5/16'' max.
- Stroke length: 6-11/16''
- Ram diameter: 2-1/2"
- Bed support bars: 1-3/8'' dia.
- Bed adjustment holes: 6 holes, 6-5/16" on center
- Bed dimensions: 25-1/2" wide x 12-3/16" deep
- Overall dimensions: 49'' W x 38'' D x 72'' H
- Shipping dimensions: 74" W x 36" D x 18" H
- Includes 2 arbor plates
- Approximate shipping weight: 625 lbs.
