Item# T1229 Model# T1229
$405.00
+$0.00
Shipping
+$0.00
Oversize

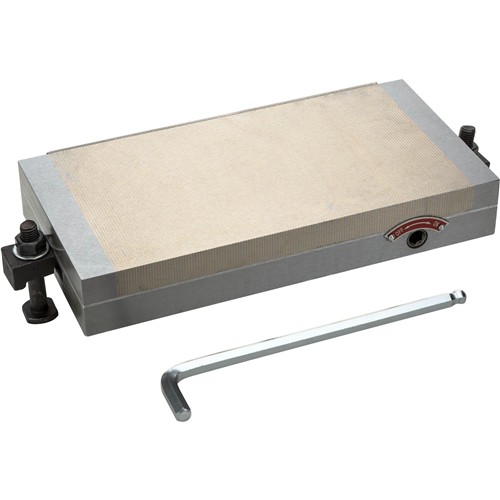

Nothing beats a Magnetic Chuck for surface grinding applications. This dense magnetic chuck features finely spaced brass and steel pole divisions for uniformly holding small parts. Includes toe clamps, removable handle, and adjustable side rail.
View More Details
Specifications:
- Pole height: 0.70"
- Table height: 1.75"
- Brass pole spacing: 1/32"
- Steel pole spacing: 1/16"
- High holding power: max 140 lb./sq. in.
- Sealed against dirt and liquid
- Working surface parallel to base within 0.0004"
- Removable handle to turn magnetic force on and off
- Toe clamps fit 1/2" T-slots
- Surface size: 6" x 12"
Accessories
Recommended For You
Overview
Nothing beats a Magnetic Chuck for surface grinding applications. This dense magnetic chuck features finely spaced brass and steel pole divisions for uniformly holding small parts. Includes toe clamps, removable handle, and adjustable side rail.
Specifications:
- Pole height: 0.70"
- Table height: 1.75"
- Brass pole spacing: 1/32"
- Steel pole spacing: 1/16"
- High holding power: max 140 lb./sq. in.
- Sealed against dirt and liquid
- Working surface parallel to base within 0.0004"
- Removable handle to turn magnetic force on and off
- Toe clamps fit 1/2" T-slots
- Surface size: 6" x 12"
