Item# G0637HEP Model# G0637HEP

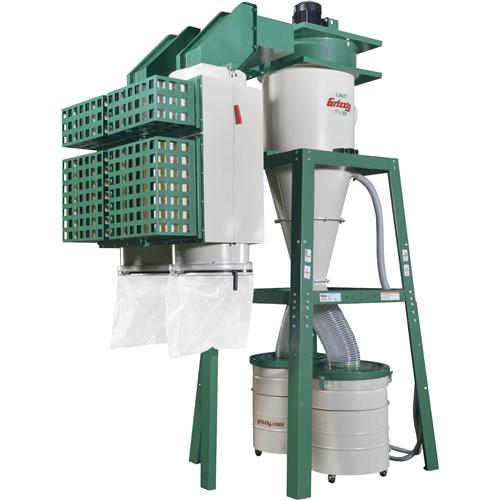

Grizzly G0637HEP - 7-1/2 HP 3-Phase Dual-Filtration HEPA Cyclone Dust Collector

The best of the best! This is the same unit as our G0637, but pre-equipped with an upgraded dual-filtration HEPA filter system! Our dual-filtration HEPA cyclones are geared toward those looking for the best filtration on the market. Features a primary filter with efficiency of 99.9% at 0.2-2 microns and a secondary HEPA filter with efficiency of 99.97% at 0.3 microns in size. The advantage of this dual filtration setup is the majority of all fine dust is captured by the first filter and only the finest dust makes it to the HEPA filter, resulting in up to a 900% increase in the life of the HEPA filter. This results in a superbly long-lasting HEPA filter (of up to 10 years) and the ultimate in clean air quality.

We've taken our extremely successful line of Cyclone Dust Collectors a couple of steps further by adding this 7-1/2 HP monster to our selection. With dual filters, 3468 CFM of airflow capacity, and 14.7" maximum static pressure, this cyclone is ideally suited for mid- to large-sized shops with multiple dust-producing machines running at the same time. An innovative air exhaust muffler keeps the noise level down—without reducing efficiency.

CSA certified meeting CAN/CSA C22.2 #243-10 and ANSI/UL 1017-8 standards!

Specifications:

  • Motor: TEFC Class "F", 7-1/2 HP, 220V/440V*, 3-phase, 25A/12.5A
  • Intake hole size: 10"
  • Filter surface area: 261 sq. ft
  • Impeller: 18" steel radial fin
  • Airflow capacity: 3468 CFM @ 4.3" SP
  • Maximum static pressure (inches of water): 14.7"
  • Sound level: 78-80 dB
  • Primary filter: 99.9% at 0.2-2 microns
  • Secondary filter: HEPA rated 99.97% at 0.3 microns
  • Collection drums: Steel, 55 gallon x 2
  • Overall dimensions: 96-1/4" L x 52-1/2" W x 139-3/8" H
  • Stand: 13 gauge steel
  • Cyclone body: 16 gauge steel
  • Blower housing: 11 gauge steel
  • Approx. shipping weight: 1139 lbs.

Features:

  • Ramped inlet maximizes dust flow into the collection drums
  • Steel collection drums have casters for easy dust disposal
  • Remote controlled magnetic switch
  • Class "F" motor
  • Dual pleated filters with cleaning brushes maximize air flow
  • Standard equipment mufflers reduce noise level without reducing air flow
  • 14.73" static pressure for greater duct design flexibility
  • Includes stand

    *440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information

View More Details

Product Resources

Specification Sheet - PDF Manual - PDF Parts List - PDF Buy Parts

Accessories

Recommended For You

Overview Comparisons Reviews Documents
Overview
The best of the best! This is the same unit as our G0637, but pre-equipped with an upgraded dual-filtration HEPA filter system! Our dual-filtration HEPA cyclones are geared toward those looking for the best filtration on the market. Features a primary filter with efficiency of 99.9% at 0.2-2 microns and a secondary HEPA filter with efficiency of 99.97% at 0.3 microns in size. The advantage of this dual filtration setup is the majority of all fine dust is captured by the first filter and only the finest dust makes it to the HEPA filter, resulting in up to a 900% increase in the life of the HEPA filter. This results in a superbly long-lasting HEPA filter (of up to 10 years) and the ultimate in clean air quality.

We've taken our extremely successful line of Cyclone Dust Collectors a couple of steps further by adding this 7-1/2 HP monster to our selection. With dual filters, 3468 CFM of airflow capacity, and 14.7" maximum static pressure, this cyclone is ideally suited for mid- to large-sized shops with multiple dust-producing machines running at the same time. An innovative air exhaust muffler keeps the noise level down—without reducing efficiency.

CSA certified meeting CAN/CSA C22.2 #243-10 and ANSI/UL 1017-8 standards!

Specifications:

  • Motor: TEFC Class "F", 7-1/2 HP, 220V/440V*, 3-phase, 25A/12.5A
  • Intake hole size: 10"
  • Filter surface area: 261 sq. ft
  • Impeller: 18" steel radial fin
  • Airflow capacity: 3468 CFM @ 4.3" SP
  • Maximum static pressure (inches of water): 14.7"
  • Sound level: 78-80 dB
  • Primary filter: 99.9% at 0.2-2 microns
  • Secondary filter: HEPA rated 99.97% at 0.3 microns
  • Collection drums: Steel, 55 gallon x 2
  • Overall dimensions: 96-1/4" L x 52-1/2" W x 139-3/8" H
  • Stand: 13 gauge steel
  • Cyclone body: 16 gauge steel
  • Blower housing: 11 gauge steel
  • Approx. shipping weight: 1139 lbs.

Features:

  • Ramped inlet maximizes dust flow into the collection drums
  • Steel collection drums have casters for easy dust disposal
  • Remote controlled magnetic switch
  • Class "F" motor
  • Dual pleated filters with cleaning brushes maximize air flow
  • Standard equipment mufflers reduce noise level without reducing air flow
  • 14.73" static pressure for greater duct design flexibility
  • Includes stand

    *440V operation requires purchasing additional components and installation by our technicians. Please call customer service at (570) 546-9663 for more information
