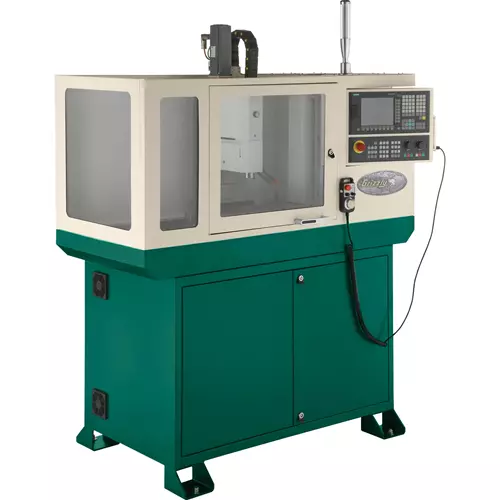

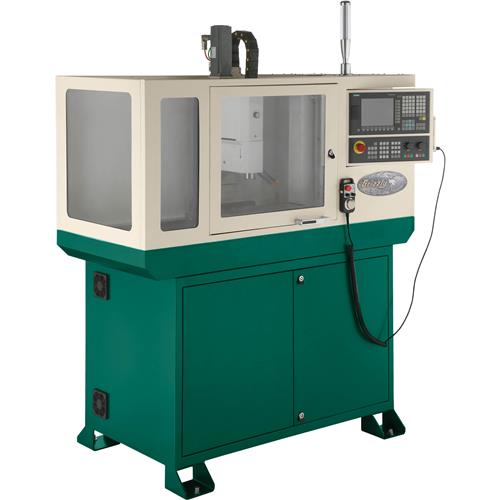

This machine is run by Siemens' Sinumerik CNC controller and features a popular BT30 spindle with a powered pull stud tool retention system, making tool changes lightning-fast! The positive-drive spindle, driven by a 1.5 HP motor, puts all the power right where you want it—directly into your tool. Servo motors drive the ball screws on all 3 axes, providing silky-smooth, accurate power. A 4-gallon coolant tank and dual flexible coolant nozzles ensure maximum lubrication, cooling, and cleaning during the most demanding cutting operations. And, your shop floor stays squeaky clean thanks to the enclosure, while incorporating viewing windows to allow you to keep an eye on the cutting operation.
Specifications
- Main motor: 1.5 HP, 220V, 3-phase, 5.1A
- Power requirement: 220V, 3-phase, 60 Hz, min. 15A circuit
- Table size: 7" x 24-3/8"
- Longitudinal travel: 14"
- Cross travel: 6"
- Vertical travel: 9"
- Table T-slots: (3) 7/16"
- Max workpiece weight: 220 lbs
- Spindle motor: 1.5 HP, 220V, 60 Hz
- Spindle taper: BT30
- Spindles speeds: Variable, 90-4000 RPM
- CNC controller: Siemens Sinumerik
- Spindle centerline to column: 8-9/16"
- Coolant tank capacity: 4 gallons
- Rapid speed: 300 in./min.
- Position resolution: +-0.001"
- Repeat position resolution: +-0.001"
- Overall dimensions: 65"L x 42"W x 78"H
- Approximate shipping weight: 1320 lbs.
Features
- Siemens® Sinumerk CNC controller
- Servo motors with ball screws on all axes
- Powerful 1.5 HP main motor
- 90-4000 RPM spindle speeds
- Easy access to table
- Rapid table speeds of up to 300 in./min.
- Heavy-duty BT30 spindle
