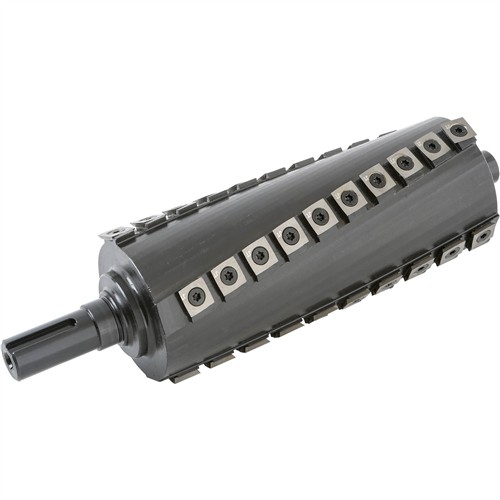

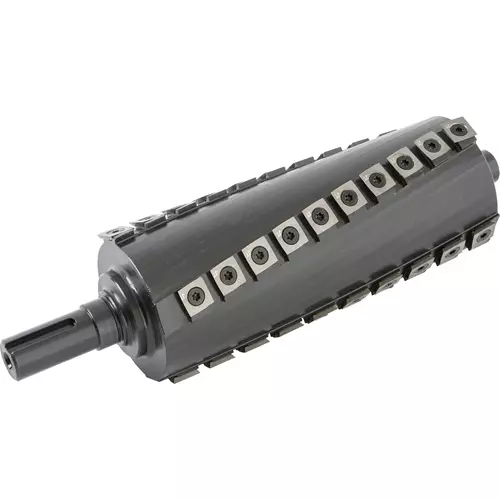

Grizzly T27713 8" Helical Cutterhead

Upgrade your 8" cutterhead and finish at the same time.

The T27713 8" Helical Cutterhead provides quiet operation, better dust collection and dramatic improvement in finish over straight-knife cutterheads.

Each indexable carbide insert can be rotated up to three times to expose a new sharp edge. No more changing and resetting knives every time a blade gets dull.

The indexable carbide inserts are positioned along a helical pattern with the cutting edges at a slight angle to the workpiece for a shearing action that leaves a glassy smooth cut even on the toughest of woods.

The T27713 comes with all 40 inserts on the cutterhead.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

The T27713 installation instructions were written by our U.S. based Technical Documentation Department and is packed with useful information.

The complete and easy to read instructions makes it easier to change the cutterhead on your planer.

We strongly recommend replacing the old cutterhead bearings at the time of installation. The T27713 uses (1) P6203ZZ bearing and (1) P6204ZZ bearing.

Parts and accessories for the cutterhead are available on-line and shipped from the Grizzly parts warehouse in Springfield, MO.

FITS:

• Grizzly G0656 8" Jointers
• Grizzly G0656P 8" Jointers

SPECIFICATIONS:

• Maximum width of cut: 8"
• Cutterhead diameter: 74 mm
• Number of indexable carbide inserts: 40
• Indexable carbide insert size: 15 x 15 x 2.5mm

Note: Helical heads not capable of rabbeting.
