Item# G0593 Model# G0593

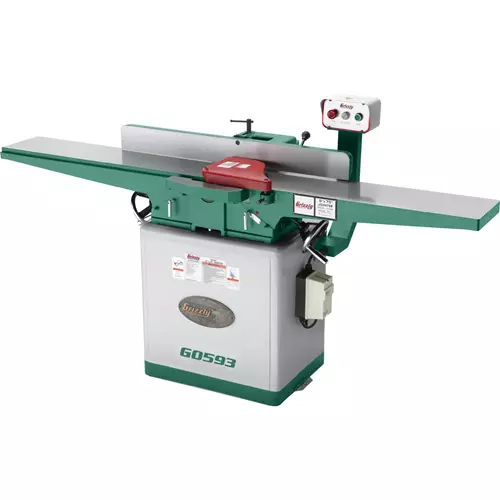

Grizzly G0593 - 8" Jointer w/ Spiral Cutterhead

Grizzly is pleased to introduce the newest addition to our jointer family, the G0593 8" x 75" Jointer. Just check out these great features and you will know why they are the best selling 8" Jointers on the market today.

Note on replacement inserts:

  • For models manufactured March, 2008 and later, use H9893 replacement inserts.
  • For models manufactured February, 2008 and earlier, use H7319 replacement inserts.
  • Features:

    • Beds slide on dovetailed ways
    • Shielded and lubricated bearings
    • Double V-belt drive
    • Handwheel adjusted tables
    • Heavy-duty center mounted fence
    • Built-in dust chute
    • Powder coated paint
    • Rabbeting table
    • Pedestal mounted control switch
    • Magnetic switch
    • Free pair of safety blocks
    • Spiral cutterhead

    Specifications:

    • Motor: 2 HP, 110V/220V, single-phase, TEFC, 3450 RPM
    • Precision ground cast iron table size: 9 1/4" x 75"
    • Cutterhead speed: 5500 RPM
    • Cutterhead diameter: 3 1/16"
    • Max. depth of cut: 1/8"
    • Max. rabbeting depth: 1/2"
    • Cuts per minute: 22,000
    • Deluxe cast iron fence size: 38"L x 1 1/4"W x 4"H
    • Approximate shipping weight: 558 lbs.
    • 8" x 75" long bed
    View More Details

    Accessories

    Recommended For You

    Overview
    Grizzly is pleased to introduce the newest addition to our jointer family, the G0593 8" x 75" Jointer. Just check out these great features and you will know why they are the best selling 8" Jointers on the market today.

    Note on replacement inserts:

  • For models manufactured March, 2008 and later, use H9893 replacement inserts.
  • For models manufactured February, 2008 and earlier, use H7319 replacement inserts.
  • Features:

    • Beds slide on dovetailed ways
    • Shielded and lubricated bearings
    • Double V-belt drive
    • Handwheel adjusted tables
    • Heavy-duty center mounted fence
    • Built-in dust chute
    • Powder coated paint
    • Rabbeting table
    • Pedestal mounted control switch
    • Magnetic switch
    • Free pair of safety blocks
    • Spiral cutterhead

    Specifications:

    • Motor: 2 HP, 110V/220V, single-phase, TEFC, 3450 RPM
    • Precision ground cast iron table size: 9 1/4" x 75"
    • Cutterhead speed: 5500 RPM
    • Cutterhead diameter: 3 1/16"
    • Max. depth of cut: 1/8"
    • Max. rabbeting depth: 1/2"
    • Cuts per minute: 22,000
    • Deluxe cast iron fence size: 38"L x 1 1/4"W x 4"H
    • Approximate shipping weight: 558 lbs.
    • 8" x 75" long bed
