Item: G0656XW | Model: G0656XW
Image for G0656XW

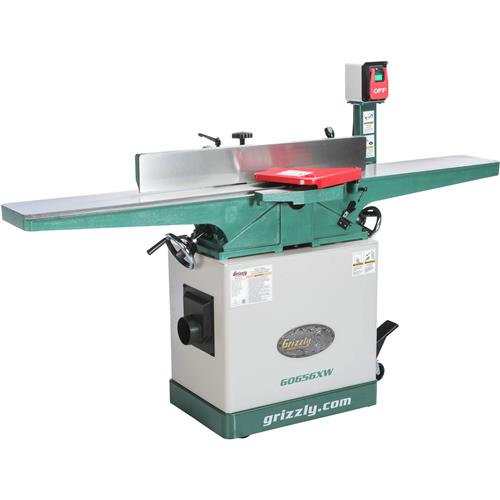

Grizzly G0656XW - 8" Jointer with Spiral Cutterhead

This 8" Jointer has all the features you want for precision jointing applications and ease of use. For precision jointing, we started with a six foot, cast-iron bed and added positive handwheel adjustment for both the infeed and outfeed tables. A built-in mobile base, center-mounted fence with lateral rack-and-pinion control, and a pedestal-mounted switch all combine to make this jointer one of the best you'll find anywhere.

Specifications:

  • Motor: 3 HP, 240V single-phase, TEFC, 3450 RPM
  • Amps: 12A
  • Precision-ground cast-iron table size: 73" x 9-3/8" x 2"
  • Number of carbide inserts: 40, 14 x 14 x 2mm
  • Cutterhead speed: 5350 RPM
  • Cutterhead diameter: 3"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting depth: 1/2"
  • Cuts per minute: 21,400
  • Fence size: 35"L x 5"H
  • Approximate shipping weight: 520 lb.

Features:

  • Beds slide on dovetailed ways
  • Shielded and lubricated bearings
  • Built-in mobile base
  • Handwheel infeed, outfeed table adjustment
  • Handwheel controlled rank-and-pinion fence adjustment
  • Built-in dust chute and 4" dust port
  • Rabbeting table
  • Easy to reach pedestal-mounted switch
View More Details

Accessories

Image for T28417 20 Amp 250V NEMA L6-20 Single-Phase Twist Lock Plug Item# T28417 $18.95 Add Image for H2993 Machinist's Square Set, 4-Pc. Item# H2993 $26.95 Add Image for G5562 Slipit, Silicone-Free Sliding Compound Gel 1 qt. Item# G5562 $28.95 Add Image for W1054 Dust Collection Kit #1 Item# W1054 $30.95 Add Image for W1034 4" x 10' Clear Wire Reinforced Flexible Hose Item# W1034 $67.95 Add
Shop All Accessories
Overview Specifications & Comparisons Specification Sheet Manual Parts List Buy Parts
Overview
This 8" Jointer has all the features you want for precision jointing applications and ease of use. For precision jointing, we started with a six foot, cast-iron bed and added positive handwheel adjustment for both the infeed and outfeed tables. A built-in mobile base, center-mounted fence with lateral rack-and-pinion control, and a pedestal-mounted switch all combine to make this jointer one of the best you'll find anywhere.

Specifications:

  • Motor: 3 HP, 240V single-phase, TEFC, 3450 RPM
  • Amps: 12A
  • Precision-ground cast-iron table size: 73" x 9-3/8" x 2"
  • Number of carbide inserts: 40, 14 x 14 x 2mm
  • Cutterhead speed: 5350 RPM
  • Cutterhead diameter: 3"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting depth: 1/2"
  • Cuts per minute: 21,400
  • Fence size: 35"L x 5"H
  • Approximate shipping weight: 520 lb.

Features:

  • Beds slide on dovetailed ways
  • Shielded and lubricated bearings
  • Built-in mobile base
  • Handwheel infeed, outfeed table adjustment
  • Handwheel controlled rank-and-pinion fence adjustment
  • Built-in dust chute and 4" dust port
  • Rabbeting table
  • Easy to reach pedestal-mounted switch
