Item# G0656W Model# G0656W

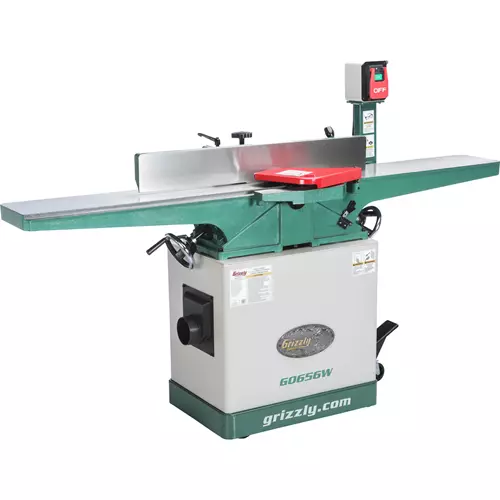

Grizzly G0656W - 8" x 72" Jointer with Mobile Base

This 8" Jointer has all the features you want for precision jointing applications and ease of use. For precision jointing, we started with a six foot, cast iron bed and added positive handwheel adjustment for both the infeed and outfeed tables. A built-in mobile base, center-mounted fence with lateral rack-and-pinion control, and a pedestal-mounted switch all combine to make this jointer one of the best you'll find anywhere.

Specifications:

  • Motor: 3 HP, 240V single-phase, TEFC, 3450 RPM
  • Amps: 12A
  • Precision-ground cast iron table size: 73-1/2" x 9-3/8" x 2"
  • Cutterhead knives: 4 HSS, 8-1/16" x 3/4" x 1/8"
  • Cutterhead speed: 5350 RPM
  • Cutterhead diameter: 3"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting depth: 1/2"
  • Cuts per minute: 21,400
  • Fence size: 35"L x 5"H
  • Approximate shipping weight: 518 lb.

Features:

  • Beds slide on dovetailed ways
  • Shielded and lubricated bearings
  • Built-in mobile base
  • Handwheel infeed, outfeed table adjustment
  • Heavy-duty center-mounted fence
  • Handwheel controlled rank-and-pinion fence adjustment
  • Built-in dust chute and 4" dust port
  • Rabbeting table
  • Easy to reach pedestal-mounted switch
View More Details

Accessories

Recommended For You

Overview
This 8" Jointer has all the features you want for precision jointing applications and ease of use. For precision jointing, we started with a six foot, cast iron bed and added positive handwheel adjustment for both the infeed and outfeed tables. A built-in mobile base, center-mounted fence with lateral rack-and-pinion control, and a pedestal-mounted switch all combine to make this jointer one of the best you'll find anywhere.

Specifications:

  • Motor: 3 HP, 240V single-phase, TEFC, 3450 RPM
  • Amps: 12A
  • Precision-ground cast iron table size: 73-1/2" x 9-3/8" x 2"
  • Cutterhead knives: 4 HSS, 8-1/16" x 3/4" x 1/8"
  • Cutterhead speed: 5350 RPM
  • Cutterhead diameter: 3"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting depth: 1/2"
  • Cuts per minute: 21,400
  • Fence size: 35"L x 5"H
  • Approximate shipping weight: 518 lb.

Features:

  • Beds slide on dovetailed ways
  • Shielded and lubricated bearings
  • Built-in mobile base
  • Handwheel infeed, outfeed table adjustment
  • Heavy-duty center-mounted fence
  • Handwheel controlled rank-and-pinion fence adjustment
  • Built-in dust chute and 4" dust port
  • Rabbeting table
  • Easy to reach pedestal-mounted switch
