Item: G0656PX | Model: G0656PX
Image for G0656PX
1 Product Video

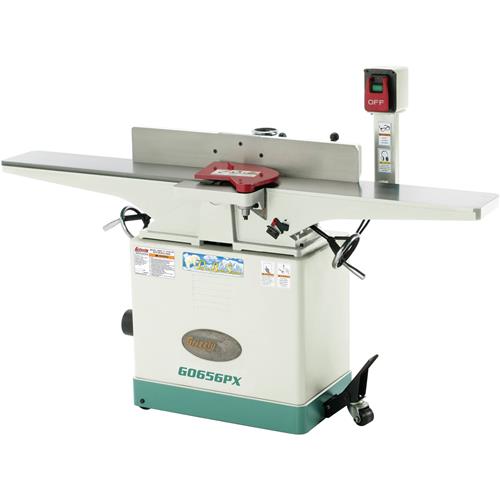

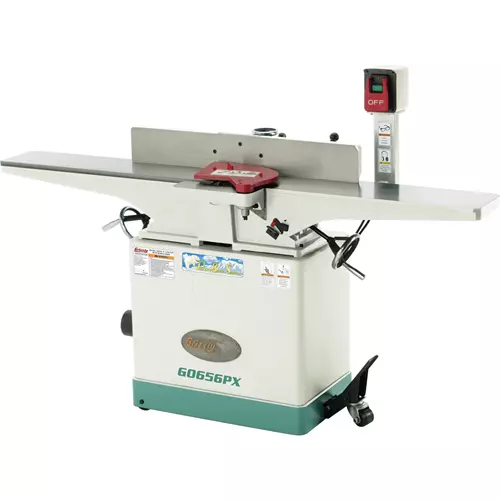

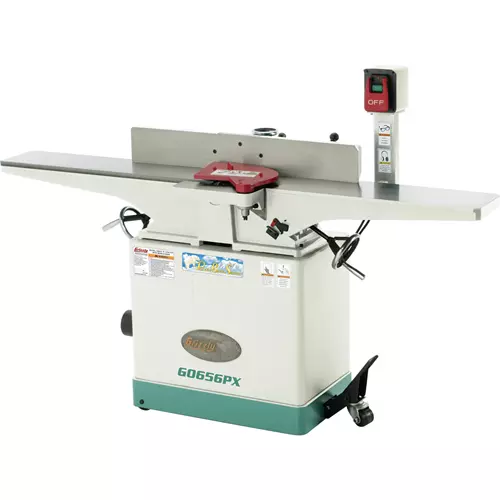

G0656PX 8" x 72" Jointer with Spiral Cutterhead

This 8" Jointer has all the features you’d want for precision jointing applications and ease of use. For precision jointing, we started with a 6 foot, cast iron bed and added positive handwheel adjustment for both the infeed and outfeed tables. A built-in mobile base, center mounted fence with lateral rack and pinion control and a pedestal mounted switch all combine to make this jointer one of the best jointers you’ll find anywhere.

CSA certified meeting CSA C22.2 #71.2-10 and UL 987-8 standards!

Note on replacement inserts:

  • For models manufactured April, 2015 and later, use H7319 replacement inserts.
  • For models manufactured March, 2015 and earlier, use T21348 replacement inserts.

    • SPECIFICATIONS:

    • Motor: 3 HP, 240V, single-phase, TEFC, 3450 RPM
    • Precision ground cast iron table size: 9" x 72-1/2"
    • Cutterhead speed: 4800 RPM
    • Cutterhead diameter: 3"
    • Max. depth of cut: 1/8"
    • Max. rabbeting depth: 1/2"
    • Cuts per minute: 21,400
    • Deluxe cast iron fence size: 35" L x 5" H
    • Approximate shipping weight: 500 lbs

    FEATURES:

    • Beds slide on dovetailed ways
    • Shielded & lubricated bearings
    • Built-in mobile base
    • Handwheel infeed/outfeed table adjustment
    • Heavy-duty center-mounted fence
    • Handwheel controlled rack-and-pinon fence adjustment
    • Built-in dust chute and 4" dust port
    • Rabbeting table
    • Easy-to-reach, pedestal-mounted switch controls

    Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

    View More Details

    Frequently Purchased With

    Image for H2993 Machinist's Square Set, 4-Pc. Item# H2993 $26.95 Add Image for T28417 20 Amp 250V NEMA L6-20 Single-Phase Twist Lock Plug Item# T28417 $18.95 Add Image for T21574 0-1" Digital Thickness Gauge Item# T21574 $37.95 Add Image for W1401 Safety Push Block - Large Item# W1401 $12.50 Add Image for W1400 Safety Push Block - Small Item# W1400 $6.50 Add
    Shop All Recommended
    Overview Specifications & Comparisons Specification Sheet Manual Parts List Buy Parts
    Overview

    G0656PX 8" x 72" Jointer with Spiral Cutterhead

    This 8" Jointer has all the features you’d want for precision jointing applications and ease of use. For precision jointing, we started with a 6 foot, cast iron bed and added positive handwheel adjustment for both the infeed and outfeed tables. A built-in mobile base, center mounted fence with lateral rack and pinion control and a pedestal mounted switch all combine to make this jointer one of the best jointers you’ll find anywhere.

    CSA certified meeting CSA C22.2 #71.2-10 and UL 987-8 standards!

    Note on replacement inserts:

  • For models manufactured April, 2015 and later, use H7319 replacement inserts.
  • For models manufactured March, 2015 and earlier, use T21348 replacement inserts.

    • SPECIFICATIONS:

    • Motor: 3 HP, 240V, single-phase, TEFC, 3450 RPM
    • Precision ground cast iron table size: 9" x 72-1/2"
    • Cutterhead speed: 4800 RPM
    • Cutterhead diameter: 3"
    • Max. depth of cut: 1/8"
    • Max. rabbeting depth: 1/2"
    • Cuts per minute: 21,400
    • Deluxe cast iron fence size: 35" L x 5" H
    • Approximate shipping weight: 500 lbs

    FEATURES:

    • Beds slide on dovetailed ways
    • Shielded & lubricated bearings
    • Built-in mobile base
    • Handwheel infeed/outfeed table adjustment
    • Heavy-duty center-mounted fence
    • Handwheel controlled rack-and-pinon fence adjustment
    • Built-in dust chute and 4" dust port
    • Rabbeting table
    • Easy-to-reach, pedestal-mounted switch controls

    Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
