Item: G9744 | Model: G9744

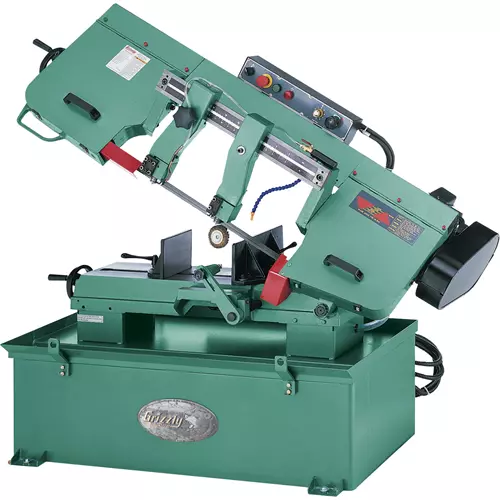

Image for Grizzly G9744 - 9" x 16" Metal-Cutting Bandsaw
This saw should be the workhorse in your shop! Besides having a huge cutting capacity it features 3 ball bearings per side on the blade guides for optimal control and accuracy. Both blade control arms are adjustable, allowing them to be positioned as close to the cut as possible. This means reliably accurate cuts! Chip tray, hydraulic down feed, coolant pump, nozzle, work stop and hinged blade wheel doors for easy access.

Features:
  • Centralized control panel on top of saw bow
  • Heavy-duty, all-steel, one-piece base
  • Adjustable hydraulic down-feed - just dial your feed rate on the control panel
  • Worm gear box has hardened and ground gears
  • Quick-release vise for fast job changes
  • Miter cutting ability
  • Blade wheels have heavy-duty ball bearings
  • Magnetic safety switch


Specifications:
  • Blade size: 1-1/16" x .035" x 121-1/2"
  • Blade speeds: 114, 196, 288, 377 FPM
  • Max. capacity rectangular @ 0 degrees: 5" x 16"
  • Max. capacity circular @ 0 degrees: 9"
  • Max. capacity rectangular @ ±45 degrees: 6" x 7-1/2"
  • Max. capacity circular @ ±45 degrees: 6"
  • Motor size: 1-1/2 H.P., 220V only, single phase
  • Miter cutting capacity: 45 degrees
  • Approx. shipping weight: 733 lbs.
