Item: G1054 | Model: G1054
Image for G1054

Grizzly G1054 - Dividing Head - BS-1

5.0 (1)
5
1
$559.37
MSRP: $755.00
You Save: $195.63 (26%)

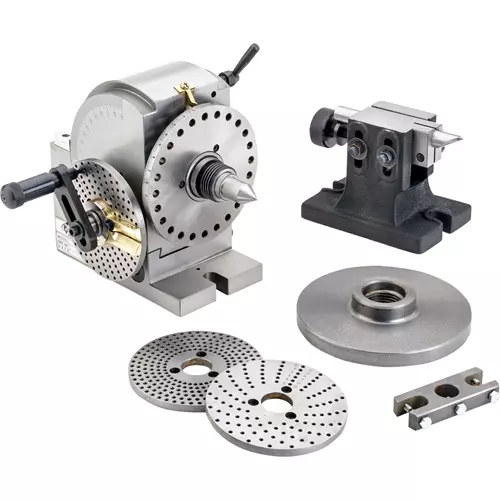

These high quality dividing heads are made with demanding care for precision gear-cutting, sharpening milling cutters, reamers, etc. Dividing heads come complete with 3 dividing plates, 1 tailstock, 1 chuck back plate, 1 center-dog and 1 center. Thread on nose 1-1/2" x 8 TPI. Ratio: 40:1

Specifications:

  • Type: BS-1
  • Overall Width: 8-1/2"
  • Overall height: 9"
  • Center (head only): 4-7/8"
  • Base size: 4-1/4" x 8"
  • Weight: 71 lbs.
  • Taper: BS-9
View More Details
Shipping

Accessories

Image for G1075 58 Pc. Clamping Kit for 1/2" T-Slots Item# G1075 $93.95 Add Image for G7154 Premium Milling Vise - 5" Item# G7154 $149.95 Add Image for G1646 12 Pc. Precision R-8 Collet Set Item# G1646 $125.95 Add Image for G1049 6" Combination Rotary Table Item# G1049 $379.00 Add Image for G1238 15-Pc. Precision 5-C Collets Set Item# G1238 $165.00 Add
California Proposition 65 Warning
Overview Reviews Q & A Manual Parts List Buy Parts
Overview
These high quality dividing heads are made with demanding care for precision gear-cutting, sharpening milling cutters, reamers, etc. Dividing heads come complete with 3 dividing plates, 1 tailstock, 1 chuck back plate, 1 center-dog and 1 center. Thread on nose 1-1/2" x 8 TPI. Ratio: 40:1

Specifications:

  • Type: BS-1
  • Overall Width: 8-1/2"
  • Overall height: 9"
  • Center (head only): 4-7/8"
  • Base size: 4-1/4" x 8"
  • Weight: 71 lbs.
  • Taper: BS-9
