Item# G9747 Model# G9747

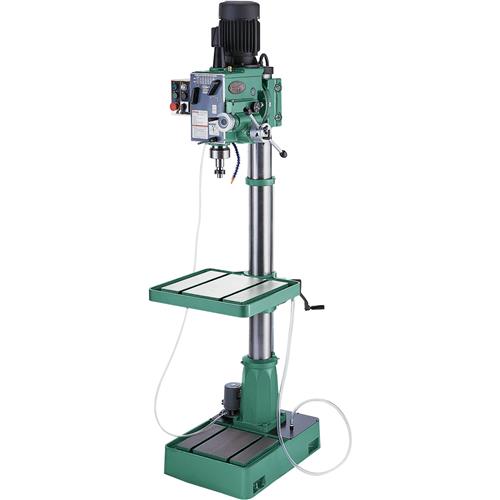

Grizzly G9747 - Heavy-Duty Gear Head Drill Press

This feature-packed machine is ready for your shop! Comes with a coolant pump, power down feed, tapping control box and easy selection speed controls. What's more, the gear head can be repositioned along the column for expanded capacity when work is mounted on the base. Designed to withstand the most demanding jobs.

Specifications:

  • Motor size: 1-1/2 H.P., 3 Phase
  • Voltage: 220V
  • Switch & wiring: Reversing/220V
  • Overall height: 89"
  • Spindle travel: 5"
  • Number of speeds: 12
  • Spindle taper: MT #4
  • Range of speeds: 65 - 2915 RPM
  • Swing: 20-1/2
  • Drilling capacity: 1-5/8" in Mild Steel
  • Table size: 21-1/4" x 18-1/2"
  • Approx. shipping weight: 896 lbs.
View More Details

Recommended For You

Overview
This feature-packed machine is ready for your shop! Comes with a coolant pump, power down feed, tapping control box and easy selection speed controls. What's more, the gear head can be repositioned along the column for expanded capacity when work is mounted on the base. Designed to withstand the most demanding jobs.

Specifications:

  • Motor size: 1-1/2 H.P., 3 Phase
  • Voltage: 220V
  • Switch & wiring: Reversing/220V
  • Overall height: 89"
  • Spindle travel: 5"
  • Number of speeds: 12
  • Spindle taper: MT #4
  • Range of speeds: 65 - 2915 RPM
  • Swing: 20-1/2
  • Drilling capacity: 1-5/8" in Mild Steel
  • Table size: 21-1/4" x 18-1/2"
  • Approx. shipping weight: 896 lbs.
