Item# G5955 Model# G5955

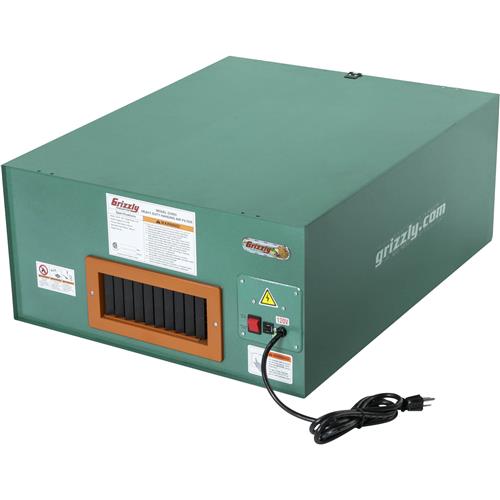

Grizzly G5955 - Heavy-Duty Hanging Air Filter

Heavy-Duty Hanging Air Filter-img-0
Heavy-Duty Hanging Air Filter-img-1
  • Motor: 1/6 HP
  • Airflow capacity: 510 CFM
  • Impeller size: UNSPECIFIED
  • Filtration: 1 Micron
  • Filter size: UNSPECIFIED
  • Intake port(s): UNSPECIFIED
  • Sound rating: < 85 dB
  • Overall height: 12-3/16 in.
  • Shipping weight: 58 lbs.

Product Group

Hanging Air Filters

Hover to View Details

Accessories

Recommended For You

Overview

G5955 Heavy-Duty Hanging Air Filter

Efficiently remove most fine wood particles from the air.

The G5955 Heavy-Duty Hanging Air Filter is designed to capture dust ambient air in a woodworking shop for a short time after cutting or sanding operations.

This ceiling mounted air filter system can clean up to 98% of airborne contaminates without affecting existing room temperatures.

The air is drawn in through the filter by a centrifugal fan or “squirrel cage” and filter before it returns to the workspace.

The primary filter captures particles up to 5-micron. The secondary filter is responsible for catching those fine wood particles up to 1-micron from the air.

This air filter is capable of recirculating the air in a room measuring 25' x 25' x 8' approximately 6 times in one hour. We recommend that the volume of air in your room be recirculated 6–8 times an hour for the best filtering effect.

Features continuous duty, low-noise motor, easy clean double filter design, and heavy gauge steel cabinet.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 1/6 HP, 120V, single-phase, 2.5A
  • Air flow performance: 510 CFM
  • Outer filter: 5-Micron
  • Inner filter: 1-Micron
  • Overall size is 30-5/16" W x 24" D x 12-3/16" H
  • Approximate shipping weight: 58 lbs.

FEATURES:

  • Cleans up to 98% of airborne contaminates without affecting existing room temperature
  • Continuous duty, low-noise motor
  • Easy clean double filter system
  • Heavy gauge steel cabinet

PLEASE NOTE: This product cannot ship to California due to current state regulations.
