Item: H8295 | Model: H8295

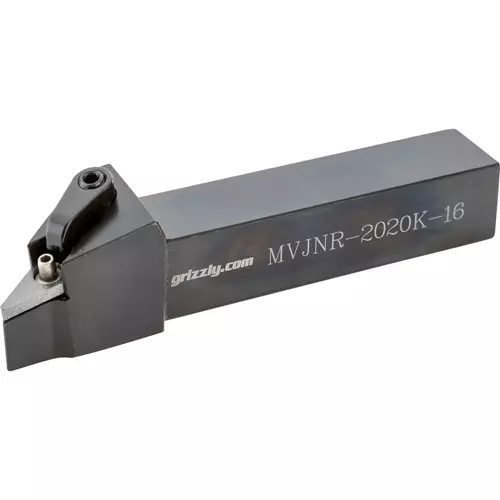

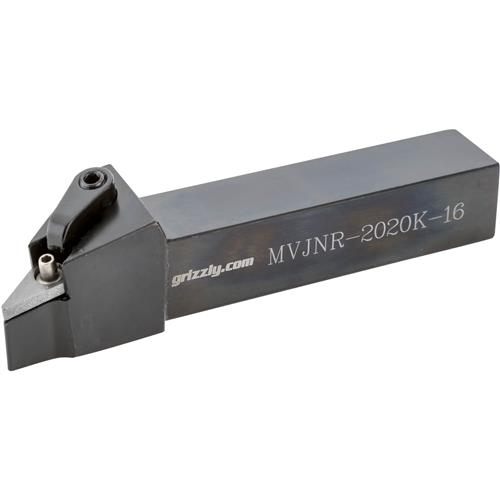

Image for Grizzly H8295 - Lathe Tool Holder - 20mm Sq., Right-Hand 35 Degrees
When you need to reach into tight features or profile a complex part, you need to have a tool and tool holder with a narrow shape. The 35° diamond (rhombic) tool holders are offered in left and right hand configurations and in 3 shank sizes to fit most lathes. Inserts not included.

  • Shank: 20x20mm
  • Overall Length: 4-15/16"
  • Hand: RH
  • Cutting Edge Angle: 35 degrees
  • Uses ISO inserts: VNMG160408
  • Uses ANSI inserts: VNMG332
  • Compatible Inserts: H8347 and H8348

    • Accessories

    California Proposition 65 Warning
    Overview
    Overview
    When you need to reach into tight features or profile a complex part, you need to have a tool and tool holder with a narrow shape. The 35° diamond (rhombic) tool holders are offered in left and right hand configurations and in 3 shank sizes to fit most lathes. Inserts not included.

    • Shank: 20x20mm
    • Overall Length: 4-15/16"
    • Hand: RH
    • Cutting Edge Angle: 35 degrees
    • Uses ISO inserts: VNMG160408
    • Uses ANSI inserts: VNMG332
  • Compatible Inserts: H8347 and H8348
