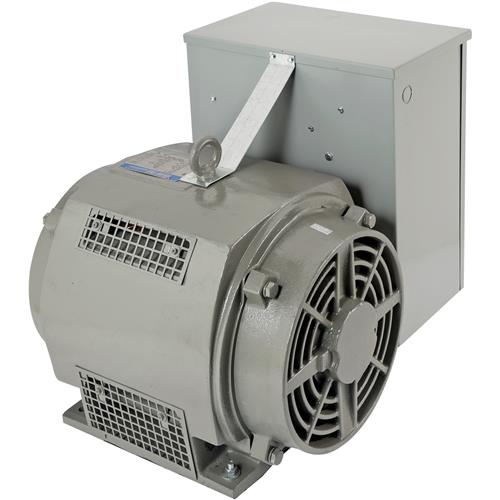

H3741 30 HP Rotary Phase Converter
Save money by increasing efficiency and decreasing electricity use.
The H3741 30 HP Rotary Phase Converter allows you to operate 3-phase machinery from a single-phase power source at 100% power and 95% efficiency.
Each model operates up to twice its nameplate rating in mixed-motor load.
For heavily-loaded or hard-start machinery, such as gearhead lathes, compressors, or dust collectors, choose a nameplate rating 3 times the HP of the most heavily loaded motor.
See our individual 3-phase machine pages for specific phase converter recommendations.
For application assistance, please call our technical support group at (570) 546-9663.
Made in the U.S.A.
SPECIFICATIONS:
- 30 HP
- Starting capacity: 25 HP
- Shipping weight: 417 lbs.
FEATURES:
- Cool and quiet operation
- Operates 3-phase motors at full power
- 95% electrical efficiency
- Drip-proof cast-iron casing
- Single or multiple loads
- Identical input/output voltages
- "Stackable" for higher HP requirements
- Step-by-step instructions
