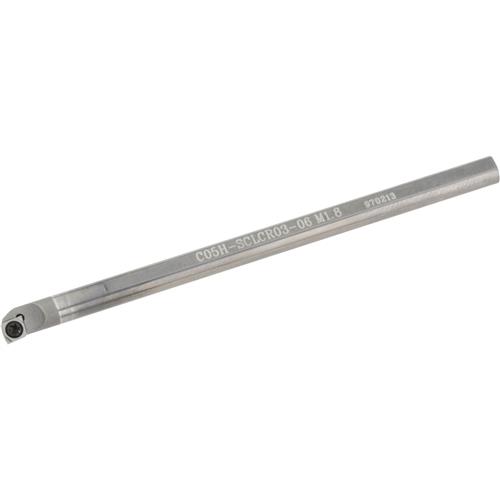

T10248 5mm Shank, Right-Hand Solid Carbide Mini Boring Bar
Made to exacting specifications with solid carbide for rigidity and precision.
The T10248 Solid Carbide Mini Boring Bars with carbide shanks offer the stiffness of a solid carbide boring bar and the convenience of interchangeable carbide inserts.
This combination offers the best of both worlds!
The insert pockets are cut for a tight fit and the -5° cutter profile is fully supported.
Inserts are not included. The T10246 Carbide Inserts for steel, stainless, and cast-iron or the T10245 Carbide Inserts for cast-iron and aluminum are available.
Uses and includes hardened Torx® screw for securing inserts.
The T10248 comes with a 1-year warranty assuring the set is free from factory defects.
The Grizzly Customer Service and Technical Support teams are U.S. based.
SPECIFICATIONS:
- Overall Length: 90mm
- Shank: 5mm Diameter
- Bore Depth: 1"
- Minimum Bore: 0.236"
- Hand: RH
- Cutting Edge Angle: -5°
- Bit type: Insert
