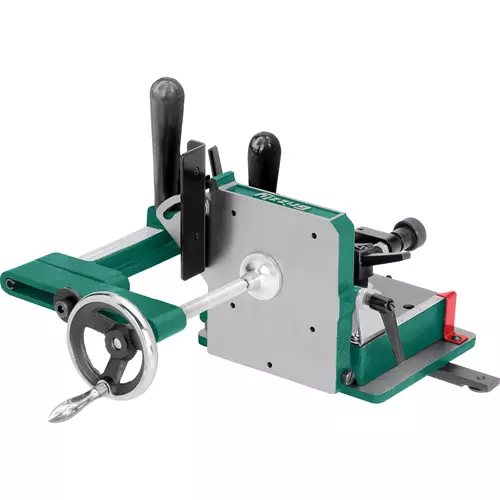

Grizzly H7583 Tenoning Jig

Cut perfect tenons with your table saw.

A tenoning jig makes it easy to cut tenons on a table saw, which are important in many woodworking joints, such as mortise and tenon joints.

The fully-adjustable H7583 Tenoning Jig fits left- and right-tilting table saws with 3/8" H x 3/4" W "T" shaped miter slot, while handling stock up to 3-1/4" thick.

It has an adjustable guide bar to control sliding friction/precision in the miter slot and two large handles for to help ensure smooth control.

The bevel angle is adjustable from 90° to 75° and the backstop is adjustable from 90° to 45°.

The multi-position control levers and extra-large clamping handwheel also ensure accurate and repeatable results.

Additional assembly required for left-tilting saws.

SPECIFICATIONS:

• Table saw miter slot: Standard 3/4"
• Minimum distance from miter slot center to blade: 3-3/4"
• Maximum distance from miter slot center to blade: 6-3/4"

FEATURES:

• Fits left-tilting and right-tilting table saws with "T" shaped miter slot
• Ensures accurate and repeatable results
• Adjustable bevel angle and backstop
• 1-year limited warranty
