Parts for H7583 - Tenoning Jig

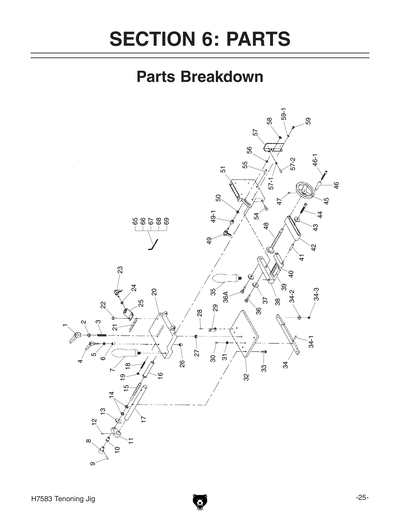

Part Diagram for H7583
Part Diagram for H7583
Part Diagram for H7583
Part Diagram for H7583

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

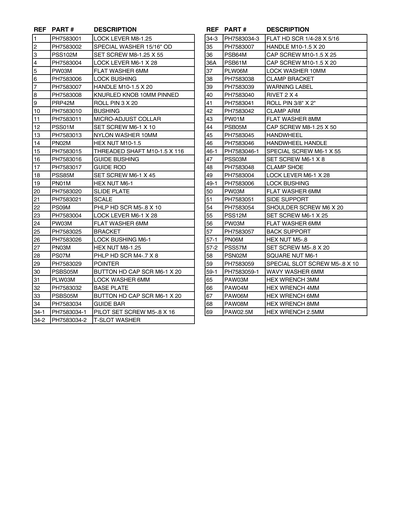

Ref #
Part #
Description
1
LOCK LEVER M8-1.25
Price
$3.65
2
LOCK LEVER WASHER 15/16" OD
Price
$1.90
3
SET SCREW M8-1.25 X 55
Price
N/A
4
LOCK LEVER M6-1 X 28
Price
$3.65
5
FLAT WASHER 6MM
Price
N/A
6
LOCK BUSHING
Price
$1.90
7
HANDLE M10-1.5 X 20
Price
$4.00
8
KNURLED KNOB 10MM PINNED
Price
$2.60
9
ROLL PIN 3 X 20
Price
N/A
10
BUSHING
Price
$1.90
11
BRACKET
Price
$4.00
12
SET SCREW M6-1 X 10
Price
N/A
13
NYLON WASHER 10MM
Price
$1.90
14
HEX NUT M10-1.5
Price
N/A
15
THREADED SHAFT M10-1.5 X 116
Price
$3.65
16
GUIDE BUSHING
Price
$13.35
17
GUIDE ROD
Price
$5.75
18
SET SCREW M6-1 X 45
Price
N/A
19
HEX NUT M6-1
Price
N/A
20
SLIDE PLATE
Price
$25.60
21
SCALE
Price
$1.90
22
PHLP HD SCR M5-.8 X 10
Price
N/A
23
LOCK LEVER M6-1 X 28
Price
N/A
24
FLAT WASHER 6MM
Price
N/A
25
BRACKET
Price
$1.90
26
LOCK BUSHING M6-1
Price
$5.45
27
HEX NUT M8-1.25
Price
N/A
28
PHLP HD SCR M4-.7 X 8
Price
N/A
29
POINTER
Price
$1.90
30
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
31
LOCK WASHER 6MM
Price
N/A
32
BASE PLATE
Price
$21.25
33
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
34
GUIDE BAR
Price
$7.95
34-1
PILOT SET SCREW M5-.8 X 16
Price
$1.90
34-2
T-SLOT WASHER
Price
$1.90
34-3
FLAT HD SCR 1/4-28 X 5/16
Price
$1.90
35
HANDLE M10-1.5 X 20
Price
N/A
36
CAP SCREW M10-1.5 X 25
Price
N/A
36A
CAP SCREW M10-1.5 X 20
Price
N/A
37
LOCK WASHER 10MM
Price
N/A
38
CLAMP BRACKET
Price
$24.85
39
WARNING LABEL
Price
$1.25
40
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
41
ROLL PIN 3/8 X 2"
Price
$1.90
42
CLAMP ARM
Price
$7.20
43
FLAT WASHER 8MM
Price
N/A
44
CAP SCREW M8-1.25 X 50
Price
N/A
45
HANDWHEEL
Price
$5.45
46
HANDWHEEL HANDLE
Price
$1.90
46-1
HANDWHEEL HANDLE SCREW M6-1 X 55
Price
$1.90
47
SET SCREW M6-1 X 8
Price
N/A
48
CLAMP SHOE
Price
$5.10
49
LOCK LEVER M6-1 X 28
Price
N/A
49-1
LOCK BUSHING
Price
N/A
50
FLAT WASHER 6MM
Price
N/A
51
SLIDE SUPPORT
Price
$20.90
54
SHOULDER SCREW M6 X 20
Price
$1.90
55
SET SCREW M6-1 X 25
Price
N/A
56
FLAT WASHER 6MM
Price
N/A
57
BACK SUPPORT
Price
$1.90
57-1
HEX NUT M5-.8
Price
N/A
57-2
SET SCREW M5-.8 X 20
Price
N/A
58
SQUARE NUT M6-1
Price
N/A
59
BACK SUPPORT SLOT SCREW M5-.8 X 10
Price
$1.90
59-1
WAVY WASHER 6MM
Price
$1.90
65
HEX WRENCH 3MM
Price
N/A
66
HEX WRENCH 4MM
Price
N/A
67
HEX WRENCH 6MM
Price
N/A
68
HEX WRENCH 8MM
Price
N/A
69
HEX WRENCH 2.5MM
Price
N/A
100
CARTON FOR H7583
Price
$6.15
101
STYROFOAM FOR H7583
Price
$6.15
MAN
MANUAL FOR H7583 01/09
Price
$21.95
