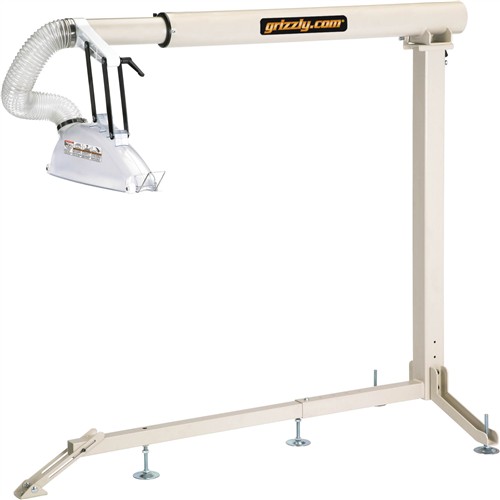

T10113 Universal Overarm Blade Guard for Table Saws
A simple system for complete table saw dust control.
Capture the dust that’s thrown above the saw by the higher escape velocity of the spinning blade.
The T10113 Universal Overarm Blade Guard features a high-efficiency, integrated 4" main line dust collection line built into the overarm blade guard assembly.
The blade guard housing pivots and locks into the exact height needed over the blade, and features dual rollers to easily ride along the workpiece.
Don't need the overarm? Simply unlock the arm and pivot it 90 degrees out of the way.
is totally self-supporting, so there’s no complicated installation process.Just bolt it to your saw base for total stability.
The T10113 extends anywhere between 39"- 68" from the support for complete versatility.
Features include a see-through blade guard and 6-1/2" vertical adjustment at the guard.
This heavy-duty Universal Overarm Guard is fully adjustable to fit nearly any cabinet-style table saw.
For use on saws equipped with a riving knife/splitter or other anti-kickback device.
The T21584 Contractor Table Saw Adapter allows you to connect the T10113 to nearly any contractor-style table saw.
The T10113 Universal Overarm Blade Guard comes with a 1-year warranty covering parts and assuring the item is free from factory defects.
The manual for the T10113 was written by our US-based Documentation Department and are packed with useful information.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the blade guard may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Floor to outer boom measurement: 50-3/4"
- Blade guard measurement: 4" on each end, 4-7/8" at widest point
- Approximate shipping weight: 66 lbs.
Note: The T10113 Overarm Blade Guard provides no kickback protection.
