Item: G0728 | Model: G0728

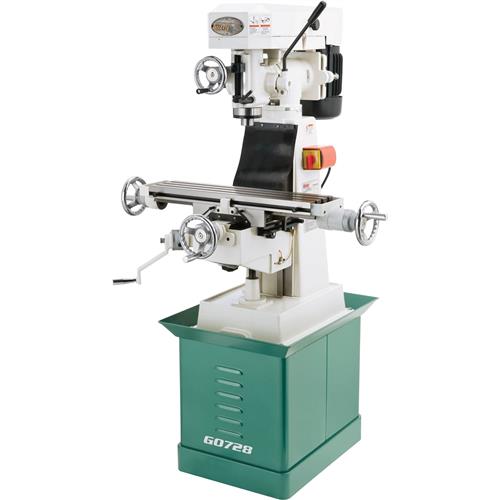

Grizzly G0728 - Vertical Mill
Simple, solid, and extremely accurate. This 6" x 26" Vertical Milling Machine is carefully built in Taiwan with heavy castings throughout for rigidity and accuracy. Just like larger and more expensive mills, the headstock tilts left or right 45° and rotates up to 90° in both directions, so you're not limited when it comes time to machine complex angles. To ensure maximum power for 110V operation, we used a 1-1/2 HP TEFC spindle motor. Speed changes are quick and easy with a stepped-pulley V-belt drive system. To keep table movement gliding effortlessly, all ways are lubricated with a one-shot oiler system. Available with or without longitudinal power feed. This is a very nice knee mill for those looking to step-up from a benchtop dovetail milling machine.
FEATURES: Dovetail sliding ways for accuracy One-shot oiler lubrication system Large stroke handle Forward/Reverse switch Rotating turret style column Head tilts side to side Precision-ground table Coarse and fine downfeed controls Adjustable downfeed stop system
SPECIFICATIONS: Motor: 1-1/2 HP, 110/220V, prewired 110V, 1725 RPM Power transfer: V-belt drive Spindle taper: R-8 Spindle travel: 3" Max. distance spindle to table: 12-1/4" Max. distance spindle to column: 6-1/2" T-Slots: 3 @ 1-11/16" on center, 9/16" wide Table size: 26" L x 6-1/8" W Table travel (longitudinal): 15-5/8" Table travel (cross): 6" Knee travel: 13-1/2" Max. drilling capacity for cast iron: 1" Head tilt: 45° left/right Number of speeds: 9 Speeds: 230, 320, 570, 670, 1200, 1420, 1650, 2170 and 2520 RPM Overall dimensions:
45-3/4" W x 68" H x 49-3/4" D Approximate shipping weight: 746 lbs.
