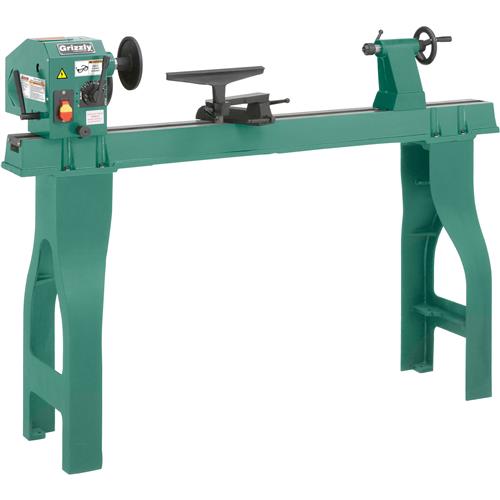

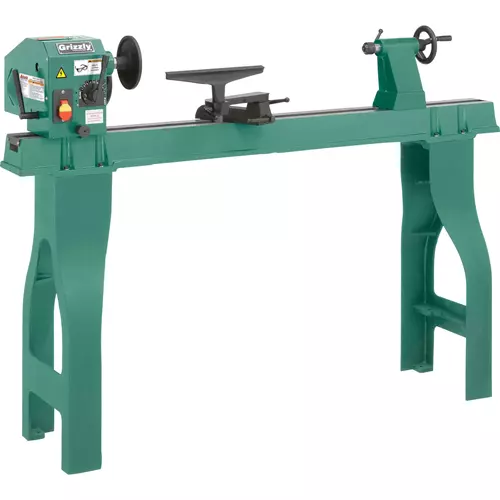

G0584 VS Wood Lathe w/ Cast-Iron Legs

From spindle to bowl turning, the Model G0584 lathe says 'quality'. When you turn your first table leg, the lathe will respond with confident, quiet power and it won't quit before you do. Rotating head and ten speeds makes this one of the most versatile machines in your shop. This is truly a remarkable lathe at this price.

Specifications:

• Motor: 3/4 HP, 110V, single-phase
• 14-1/2" swing over bed
• 43" between centers
• Heavy-duty, precision ground cast-iron bed and cast-iron legs ensures stability and minimal vibration
• Spindle is hardened and ground
• 10 speeds: 600 2400 RPM
• 0°, 60°, 90°, 120° and 180° headstock rotation
• 6" Faceplate
• 1" x 12 TPI RH headstock spindle
• MT #2 headstock and tailstock tapers
• -3/8" spindle bore
• Pivoting headstock quickly turns 180° and locks to facilitate outboard turning
• Specially designed bed allows easy positioning of outboard turning tool rest
• Outboard turning is easy with standard base extension
• Switch has removable safety key
• Quick release headstock and tailstock
• Overall dimensions: 62"L x 14-1/2"D x 45-1/2"H
• Approximate shipping weight: 300 lbs.
