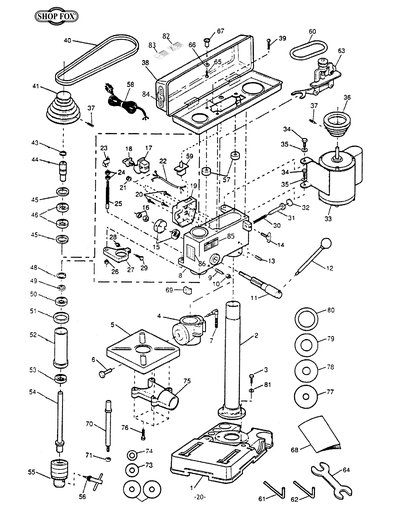

Parts for H0625 Oscillating Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE
Price
N/A
2
COLUMN
Price
N/A
3
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
4
TABLE BRACKET
Price
N/A
5
TABLE
Price
N/A
6
Now: PB25M
HEX BOLT M12-1.75 X 25
Price
N/A
7
LOCK HANDLE
Price
N/A
8
HEAD CASTING
Price
N/A
9
SET SCREW M8-1.25 X 12
Price
N/A
10
Now: PN01M
HEX NUT M6-1
Price
N/A
11
FEED SHAFT
Price
N/A
12
HANDLE BAR
Price
N/A
13
SET SCREW M6-1 X 20
Price
N/A
14
LOCK SCREW
Price
N/A
15
RETURN SPRING ASSY
Price
N/A
16
JAM NUT M10-1.0
Price
N/A
17
Now: G8988
Safety Paddle Switch
Price
N/A
18
PADDLE SWITCH KEY
Price
N/A
19
SWITCH COVER
Price
N/A
20
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
21
STRAIN RELIEF
Price
N/A
22
SWITCH CORD
Price
N/A
23
DEPTH STOP POINTER
Price
N/A
24
Now: PN14M
HEX NUT M10-1
Price
N/A
25
DEPTH STOP ROD
Price
N/A
26
Now: PN03M
HEX NUT M8-1.25
Price
N/A
27
DEPTH ROD BRACKET
Price
N/A
28
Now: PN01M
HEX NUT M6-1
Price
N/A
29
Now: PB90M
HEX BOLT M6-1 X 22
Price
N/A
30
SPRING
Price
N/A
31
SLIDE BAR
Price
N/A
32
RUBBER PAD
Price
N/A
33
MOTOR 1/2HP 110V 1-PH
Price
N/A
33A
MOTOR FAN COVER
Price
N/A
33B
MOTOR FAN
Price
N/A
34
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
35
Now: PW01M
FLAT WASHER 8MM
Price
N/A
36
MOTOR PULLEY
Price
N/A
37
SET SCREW M6-1 X 10
Price
N/A
38
PULLEY COVER
Price
N/A
39
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
40
Now: PVM28
V-BELT M28 3L280
Price
N/A
41
SPINDLE PULLEY
Price
N/A
42
DRIVE SLEEVE ASSY
Price
N/A
43
RETAINING RING
Price
N/A
44
INT SLEEVE FOR SQRE SPLINE V1.08.00
Price
N/A
44A
INT SPINE SLV FOR RND SPLINE V2.03
Price
N/A
45
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
46
BALL BEARING 6203-2RS
Price
N/A
47
QUILL ASSEMBLY
Price
N/A
48
RETAINING RING
Price
N/A
49
COLLAR
Price
N/A
50
BALL BEARING 6201-2RS
Price
N/A
51
COLLAR
Price
N/A
52
QUILL
Price
N/A
53
BALL BEARING 6201-2RS
Price
N/A
54
*DISCD*SPINDLE SHAFT B-16 STYLE V1.08.00
Price
N/A
54A
SPINDLE SHAFT V2.08.02
Price
N/A
55
CHUCK B-16 STYLE V1.08.00
Price
N/A
56
DRL CHK KEY 6MM TH-SE 12T SD-14.2MM
Price
N/A
57
COVER SPACER
Price
N/A
58
POWER CORD
Price
N/A
59
LIMIT SWITCH
Price
N/A
60
OSCILLATOR BELT
Price
N/A
61
HEX WRENCH 3MM
Price
N/A
62
HEX WRENCH 4MM
Price
N/A
63
OSCILLATING MECHANISM ASSY
Price
N/A
63A
PLASTIC GEAR
Price
N/A
64
WRENCH 14MM X 1/2"
Price
N/A
65
Now: PS21M
PHLP HD SCR M4-.7 X 15
Price
N/A
66
Now: PW02M
FLAT WASHER 5MM
Price
N/A
67
COVER KNOB
Price
N/A
68
MANUAL W1667 MFD-08.00-12.02 V1.01.00
Price
N/A
69
***USE P7945076***
Price
N/A
70
Now: D2722
Mandrel for Sanding Drum Kit
Price
N/A
70-1
*DISCD*MANDREL SPACER 3/8" ALUMINUM
Item is no longer available
Price
N/A
71
Now: PN03M
HEX NUT M8-1.25
Price
N/A
72
***USE PX1668094***
Price
N/A
73
***USE PX1668096***
Price
N/A
74
***USE PX1668095***
Price
N/A
75
DUST HOOD 2PC
Price
N/A
76
Now: PS36M
PHLP HD SCR M4-.7 X 22
Price
N/A
77
***USE PX1668102***
Price
N/A
78
***USE PX1668103***
Price
N/A
79
TABLE INSERT 1-5/8"
Price
N/A
80
***USE PX1668105***
Price
N/A
81
Now: PW01M
FLAT WASHER 8MM
Price
N/A
82
LONG HAIR SAFETY LABEL V1
Price
N/A
86
GLASSES SAFETY LABEL V1
Price
N/A
87
SHOP FOX NAMEPLATE
Price
N/A
88
Now: PW01M
FLAT WASHER 8MM
Price
N/A
89
Now: PR36M
EXT RETAINING RING 7MM
Price
N/A
90
OSCILLATING MECH. ARM
Price
N/A
91
PLASTIC GEAR
Price
N/A
92
CHUCK 1-13 MM JT33 V2.06.02
Price
N/A
93
SPINDLE SHAFT V2.08.02
Price
N/A
94
R CAPACITOR 24M 300V 1-1/2 X 2-3/4
Price
N/A
95
MOTOR FAN
Price
N/A
96
MOTOR FAN COVER
Price
N/A
98
CAP SCREW M5-.8 X 20
Price
N/A
99
MACHINE ID LABEL V1
Price
N/A
100
DEPTH CHART LABEL
Price
N/A
MANUAL
MANUAL FOR H0625 2000
