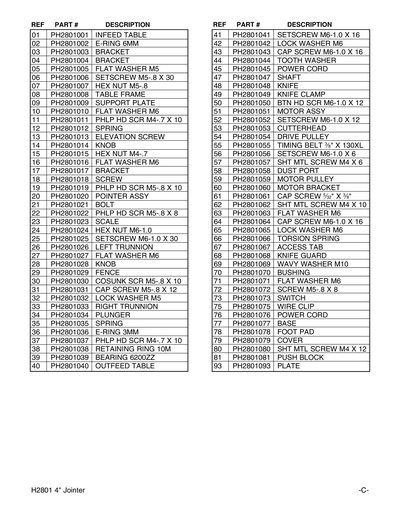

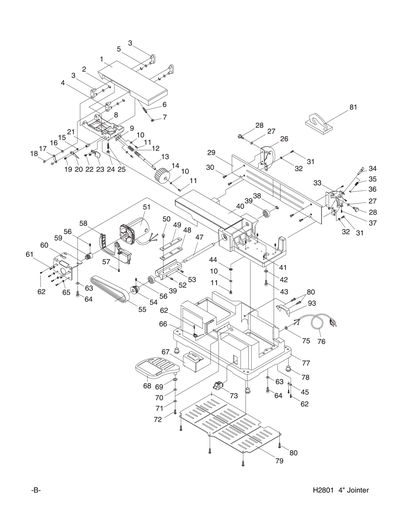

Parts for H2801 4" Jointer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
INFEED TABLE
Item is no longer available
Price
N/A
2
Now: PR04M
EXT RETAINING RING 6MM
Price
N/A
3
BRACKET
Item is no longer available
Price
N/A
4
BRACKET
Item is no longer available
Price
N/A
5
Now: PW02M
FLAT WASHER 5MM
Price
N/A
6
SET SCREW M5-.8 X 30
Price
N/A
7
Now: PN06M
HEX NUT M5-.8
Price
N/A
8
TABLE FRAME
9
SUPPORT FRAME
Item is no longer available
Price
N/A
10
Now: PW03M
FLAT WASHER 6MM
Price
N/A
11
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
12
SPRING - HELICAL 2 X 40
Item is no longer available
Price
N/A
13
ELEVATION SCREW M10-1.5 X 26
Item is no longer available
Price
N/A
14
KNOB
Item is no longer available
Price
N/A
15
Now: PN04M
HEX NUT M4-.7
Price
N/A
16
Now: PW03M
FLAT WASHER 6MM
Price
N/A
17
BRACKET
Item is no longer available
Price
N/A
18
SCR ROUND HD M4-.7 X 5
Item is no longer available
Price
N/A
19
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
20
POINTER ASSY
Item is no longer available
Price
N/A
21
HEX BOLT M5-.8 X 6.5
Item is no longer available
Price
N/A
22
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
23
SCALE
24
Now: PN01M
HEX NUT M6-1
Price
N/A
25
SET SCREW M6-1 X 30
Price
N/A
26
TRUNNION LEFT
Item is no longer available
Price
N/A
27
Now: PW03M
FLAT WASHER 6MM
Price
N/A
28
*DISCD*KNOB
Item is no longer available
Price
N/A
29
*DISCD*FENCE
Item is no longer available
Price
N/A
30
COSUNK SCR M4-.7 X 10
31
CAP SCREW M5-.8 X 10
Price
N/A
32
LOCK WASHER 5MM
Price
N/A
33
TRUNNION RIGHT
Item is no longer available
Price
N/A
34
PLUNGER
35
*DISCD*SPRING - HELICAL .4 X 12
Item is no longer available
Price
N/A
36
E-RING 3MM
37
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
38
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
39
BALL BEARING 6200ZZ
Price
N/A
40
OUTFEED TABLE
Item is no longer available
Price
N/A
41
SET SCREW M6-1 X 16
Price
N/A
42
LOCK WASHER 6MM
Price
N/A
43
CAP SCREW M6-1 X 16
Price
N/A
44
EXT TOOTH WASHER 4MM
Price
N/A
45
POWER CORD
Item is no longer available
Price
N/A
47
SHAFT
48
*DISCD*KNIFE
Item is no longer available
Price
N/A
49
KNIFE CLAMP
50
BTN HD SCR M6-1.0 X 12
51
*DISCD*MOTOR ASSY 1/2HP 110V 1-PH
Item is no longer available
Price
N/A
52
SET SCREW M6-1 X 12
Price
N/A
53
CUTTERHEAD
54
*DISCD*DRIVE PULLEY
Item is no longer available
Price
N/A
55
*DISCD*TIMING BELT 3/8" X 130XL
Item is no longer available
Price
N/A
56
SET SCREW M6-1 X 6
Price
N/A
57
SHT MTL SCREW M4 1.59 X 6
Item is no longer available
Price
N/A
58
DUST PORT
Item is no longer available
Price
N/A
59
MOTOR PULLEY
Item is no longer available
Price
N/A
60
MOTOR BRACKET
Item is no longer available
Price
N/A
61
CAP SCREW 8-32 X 3/8
Price
N/A
62
TAP SCREW M4 X 10
Price
N/A
63
Now: PW03M
FLAT WASHER 6MM
Price
N/A
64
CAP SCREW M6-1 X 16
Price
N/A
65
LOCK WASHER 6MM
Price
N/A
66
TORSION SPRING - HELICAL 1.4 X 5.6
67
ACCESS TAB
68
*DISCD*KNIFE GUARD
Item is no longer available
Price
N/A
69
WAVY WASHER 10MM
70
BUSHING
71
Now: PW03M
FLAT WASHER 6MM
Price
N/A
72
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
73
SWITCH
75
WIRE CLIP
Item is no longer available
Price
N/A
76
POWER CORD
Item is no longer available
Price
N/A
77
BASE
Item is no longer available
Price
N/A
78
FOOT PAD
Item is no longer available
Price
N/A
79
COVER
Item is no longer available
Price
N/A
80
SHT MTL SCREW M4 1.59 X 12
Item is no longer available
Price
N/A
81
Now: W1400
Safety Push Block - Small
Price
N/A
93
PLATE
Item is no longer available
Price
N/A
MANUAL

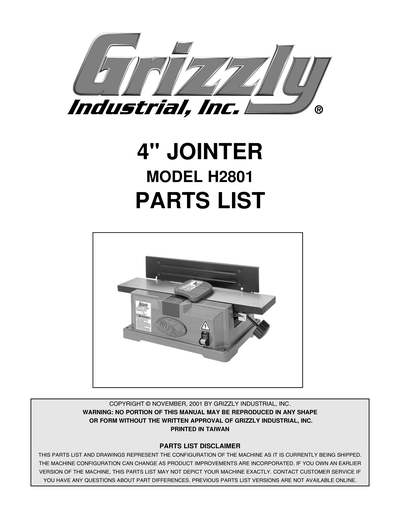

MANUAL FOR H2801 11/01
PART
MISCELLANEOUS 2801 PART
Item is no longer available
Price
N/A
