Parts for H2934 37" 20 HP 3-Phase Double-Head Wide-Belt Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

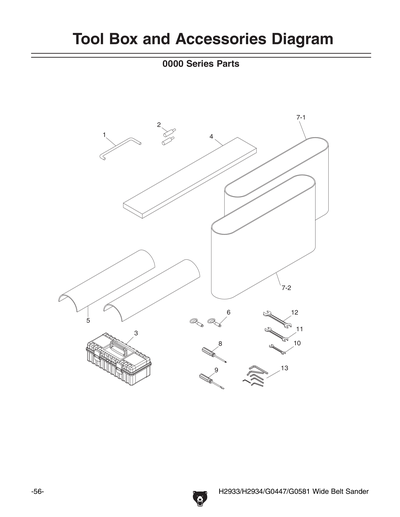

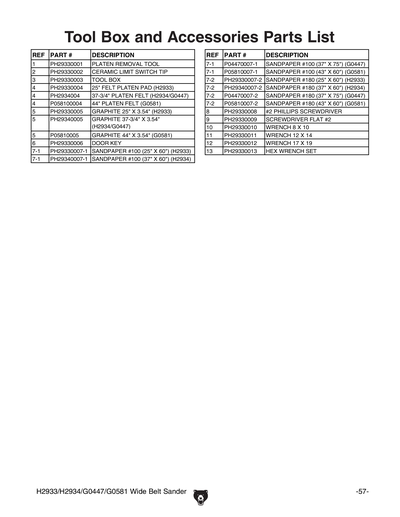

1
PLATEN REMOVAL TOOL
Price
N/A
2
***USE P9962Z0002***
3
***USE PH29330003***
4
***USE PH29345303***
5
***USE PH29345304***
6
***USE PH29330006***
7-1
SANDING BELT #100 37 X 60"
7-2
SANDING BELT #180 37 X 60"
8
PHLP HD SCREWDRIVER
Price
N/A
9
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
10
***USE PWR810***
11
***USE PWR1214***
12
***USE PWR1719***
13
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
120
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
1101
MACHINE FRAME
Price
N/A
1102
MOTOR BASE
Price
N/A
1103
MOTOR BASE HINGE
Price
N/A
1104
***USE PN06***
1105
***USE PH29331105***
1106
***USE PLW07***
1107
***USE PB41***
1108
***USE PW01***
1109
MOTOR 20HP 220V/440V 3-PH
1109-1
MOTOR FAN
1109-2
MOTOR FAN COVER
1110
PULLEY
1111
***USE PCAP11***
1112
***USE PLW01***
1113
***USE PH29331113***
1114
***USE PB03***
1115
***USE PLW01***
1116
DISC BRAKE
Price
N/A
1117
***USE PVB76***
1118
PULLEY BUSHING
1119
***USE PVA50***
1121
***USE PH29331121***
1122
***USE PW02***
1123
***USE PB21***
1124
***USE PH29331124***
1125
***USE PCAP05***
1126
***USE PH29331126***
1127
***USE PH29331127***
1128
***USE PB19***
1129
***USE PW06***
1201
***USE PH29331201***
1202
***USE PLW10***
1203
***USE PN06***
1204
***USE PW13***
1205
***USE PB84***
1206
***USE PN08***
1208
IDLE WHEEL SHAFT
Price
N/A
1209
***use P6305zz***
1210
PULLEY
Price
N/A
1211
BALL BEARING 6206ZZ
Price
N/A
1212
***USE PR11M***
1213
***USE PVA40***
1301
***USE PH29331301***
1301-1
***USE PH29331301-1***
1302
***USE PH29331302***
1302-1
BRAKE LINING
1302-2
BRAKE LINING
1303
***USE PH29331303***
1304
***USE PH29331304***
1305
BRAKE INSIDE PIECE
Price
N/A
1306
***USE PFH04***
1307
BRAKE PIN
Price
N/A
1308
***USE PCAP31***
1310
***USE PLW04***
1311
***USE PN08***
1312
***USE PCAP04***
1313
***USE PH29331313***
2101
***USE PH29332101***
2102
***USE PB03***
2103
***USE PW07***
2104
***USE PLW01***
2105
***USE PLW04***
2106
***USE PB18***
2107
***USE PH29332107***
2108
***USE PH29332108***
2109
***USE PB07***
2110
***USE PLW01***
2111
CHAIN
2201
***USE PH29332201***
2202
***USE PH29332202***
2203
***USE P51107***
2204
***USE PR12M***
2206
SPROCKET WHEEL
Price
N/A
2301
***USE PH29332301***
2302
***USE PH29332302***
2303
***use P6005zz***
2304
BEARING CAP
Price
N/A
2305
***USE PCAP05***
2306
***USE PH29332306***
2307
***use P6002zz***
2308
***USE PH29332308***
2309
***USE PCAP33***
2310
***USE PH29332310***
2311
***USE PCAP01***
2312
SPROCKET WHEEL
Price
N/A
2313
***USE PSS07***
2314
***USE PH29332314***
2315
***USE PVA36***
2316
***USE PH29332316***
2317
***USE PSS07***
2318
***USE PLW01***
2319
***USE PB07***
2320
***USE PSS07***
2321
***USE PH29332321***
2322
***USE PH29332322***
2323
***USE PB31***
2324
***USE PLW02***
2325
***USE PH29332325***
2326
***USE PW01***
2327
***USE PN06***
2328
***USE PLW07***
2331
***USE PH29332331***
2331-1
***USE PH29332331-1***
2331-2
***USE PH29332331-2***
2332
***USE PN05***
2333
***USE PB89***
2334
***USE PH29332334***
2335
***USE PB19***
2336
***USE PH29332336***
2337
***USE PS97M***
2338
***USE PN07M***
2339
***USE PK14***
2340
***USE PK48M***
2341
***USE PK37M***
2401
***USE PH29332401***
2402
SPROCKET SHAFT
Price
N/A
2403
***use G3850***
2404
***USE PH29332404***
2405
***USE PH29332405***
2406
***USE PW02***
2407
***USE PN08***
2408
***USE PN02***
2409
***USE PLW01***
2410
***USE PB07***

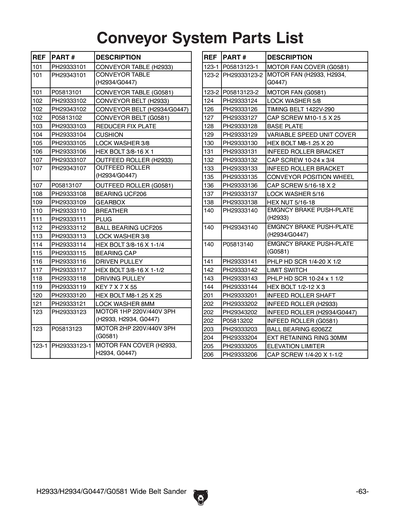

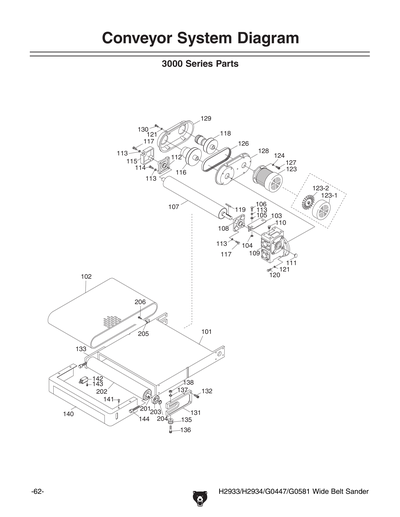

3101
CONVEYOR TABLE
3102
CONVEYOR BELT
3103
***USE PH29333103***
3104
***USE PH29333104***
3105
***USE PLW04***
3106
***USE PB18***
3107
OUTFEED ROLLER
3108
BEARING UCF206
3109
***USE PH29333109***
3110
***USE PH29333110***
3111
***USE PH29333111***
3112
***USE PUCF205***
3113
***USE PLW04***
3114
***USE PB24***
3115
***USE PH29333115***
3116
DRIVEN PULLEY
Price
N/A
3117
***USE PB16***
3118
DRIVING PULLEY
3119
***USE PK66M***
3120
***USE PB07M***
3121
***USE PLW04M***
3123
***USE P9962ZX3123***
3123-1
***USE P9962ZX3123-2***
3123-2
***USE P9962ZX3123-1***
3124
***USE PLW06***
3126
TIMING BELT
Price
N/A
3127
***USE PCAP64M***
3128
***USE PH29333128***
3129
***USE PH29333129***
3130
***USE PB09M***
3131
***USE PH29333131***
3132
CAP SCREW 10-24 X 3/4
Price
N/A
3133
***USE PH29333133***
3135
***USE PH29333135***
3136
***USE PCAP70***
3137
***USE PLW01***
3138
***USE PN02***
3140
EMERGENCY BRAKE PUSH-PLATE
3141
***USE PS04***
3142
***USE P0539306***
Price
N/A
3143
***USE PS10***
3144
***USE PB95***
3201
INFEED ROLLER SHAFT
3202
INFEED ROLLER
3203
BALL BEARING 6206-2RS
Price
N/A
3204
***USE PR15M***
3205
***USE PH29333205***
3206
***USE PCAP62***
4101
***USE PH29334101***
4102
***USE PH29334102***
4103
***USE PH29334103***
4104
***USE PH29334104***
4105
***USE PSS07***
4106
***USE PB11***
4107
Now: PN02
HEX NUT 5/16-18
Price
N/A
4108
***USE PB12***
4109
***USE PLW01***
4201
PISTON ROLLER SHAFT ASSY LONG
4201-1
PISTON ROLLER SHAFT ASSY SHORT
4202
*DISCD*PISTON ROLLER
Item is no longer available
Price
N/A
4203
***use G3850***
4204
SHAFT BEARING COLLER
Price
N/A
4205
***USE PSS07***
4301
***USE PH29334301***
4302
***USE PH29334302***
4303
***USE PRP55M***
4309
Now: PLW01
LOCK WASHER 5/16
Price
N/A
4310
***USE PB12***
5101
BEARING HOUSING
Price
N/A
5102
RUBBER ROLLER
5103
KEYED PULLEY TUBE
Price
N/A
5104
***USE PUCC206***
5105
***USE PH29335105***
5106
***USE PCAP11***
5107
***USE PK11***
5108
***USE PLW01***
5109
***use P6205zz***
5110
***USE PLW07***
5111
***USE PCAP76***
5112
***USE PCAP04***
5113
***USE PH29335113***
5114
***USE PH29335114***
5115
***USE PH29335115***
5116
***USE PH29335116***
5117
***USE PH29335117***
5118
***USE PS04***
5119
SPANNER NUT M25-2
Price
N/A
5201
BEARING HOUSING
5202
STEEL ROLLER
5203
HEX SOC HD CAP SCR M6
Price
N/A
5204
***USE PUCC205***
5205
HANDLE
5206
***USE P99795206***
5211
BEARING BRACKET PAD
5301
GRAPHITE BRACKET 37-1/2" MALE
5302
GRAPHITE BRACKET 37-1/2" FEMALE
5303
FELT PLATEN PAD 1/2 X 1-13/16 X 39"
5304
GRAPHITE PAD 37" X 3-5/8"
5305
***USE PS01***
5306
PRESSURE PLATE
Price
N/A
5307
FIXING BASE OF GRAPHITE BRACKET
Price
N/A
5308
GRAPHITE BRACKET SHAFT
5309
FASTENING TUBE
5310
***USE PSS03***
5311
***USE P04475311***
5312
***USE PH29335312***
5313
***USE PH29335313***
5314
***USE PH29335314***
5315
***USE PCAP16***
5316
***USE PW02***
5317
Now: PW02
FLAT WASHER 3/8
Price
N/A
5318
***USE PH29335318***
5319
***USE PSS08***
5320
***USE PH29335320***
5321
***USE PB03***
5322
***USE PW07***
5323
***USE PH29335323***
5401
BEARING HOUSING
Price
N/A
5402
RUBBER ROLLER
5403
FASTENING TUBE
Price
N/A
5404
***USE PUCC206***
5405
PULLEY
5406
***USE PCAP11***
5407
BEARING HOUSING
5408
BEARING BRACKET PAD
5409
***use P6206zz***
5410
***USE PH29335410***
5411
***USE PH29335411***
5417
COVER OF PULLEY

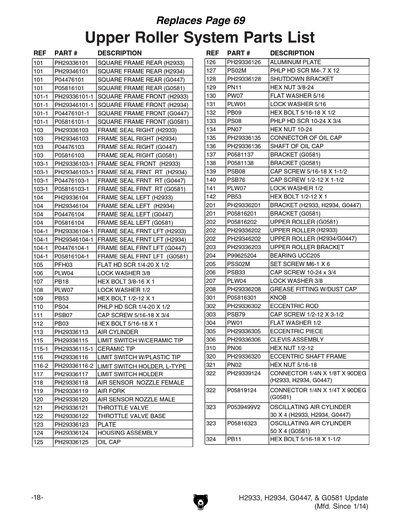

6101
SQUARE FRAME
6102
***USE PH29346103***
6103
SQUARE FRAME SEAL RIGHT
6103-1
SQUARE FRAME SEAL FRONT RIGHT
6104
SQUARE FRAME SEAL LEFT
6104-1
SQUARE FRAME SEAL FRONT LEFT
6105
***USE PFH03***
6106
***USE PLW04***
6107
***USE PB18***
6108
***USE PLW07***
6109
Now: PB53
HEX BOLT 1/2-12 X 1
Price
N/A
6110
***USE PS04***
6111
***USE PCAP07***
6112
***USE PB03***
6113
***USE PH29336113***
6114
***USE PH29336114***
6115
***USE P9962Z6115***
6115-1
LIMIT SWITCH CERAMIC TIP
Price
N/A
6116
***USE P9962Z0002***
6116-1
***USE P9962Z6115-1***
Price
N/A
6116-2
***USE P9962Z6115-1***
Price
N/A
6117
***USE PH29336117***
6118
***USE P0539426***
6119
***USE PH29336119***
6120
***USE PH29336120***
6121
***USE P99796121***
6122
***USE PH29336122***
6123
***USE P99796123***
6124
***USE P99796124***
6125
***USE P9962Z6125***
Price
N/A
6126
***USE P99796126***
6127
***USE PS02M***
6128
***USE P9962Z6128***
6129
***USE PN11***
6130
***USE PW07***
6131
***USE PLW01***
6132
***USE PB09***
6133
***USE PS08***
6134
Now: PN07
HEX NUT 10-24
Price
N/A
6135
CONNECTOR OF OIL CAP
Price
N/A
6136
SHAFT OF OIL CAP
Price
N/A

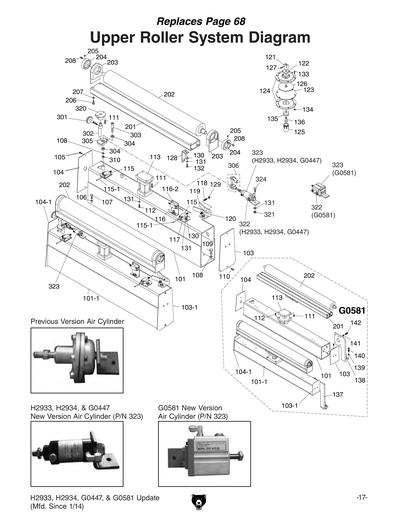

6201
UPPER ROLLER BRACKET
6202
ROLLER UPPER
Price
N/A
6203
ROLLER BRACKET UPPER
Price
N/A
6204
***USE PUCC205***
6205
***USE PSS02M***
6206
***USE PCAP33***
6207
***USE PLW04***
6208
***USE P9962Z5114***
6301
***USE PH29336301***
6302
ECCENTRIC ROD
Price
N/A
6303
***USE PCAP79***
6304
***USE PW01***
6305
***USE PH29336305***
6306
***USE PH29336306***
6307
***USE PR05M***
6308
***USE PN27M***
6309
SHAFT OF AIR CYLINDER
Price
N/A
6310
***USE PN06***
6311
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6312
***USE PH29336312***
6313
***USE P9962Z6323V2***
6314
***USE PFH02M***
6315
***USE P99796315***
6316
TOP COVER
6317
***USE PN07***
6318
***USE PS08***
6319
AIR CYLINDER BASE
Price
N/A
6320
ECCENTRIC SHAFT FRAME
Price
N/A
6321
Now: PN02
HEX NUT 5/16-18
Price
N/A
6322
***USE P0539518***
Price
N/A
6323
OSCILLATION AIR CYLINDER 30 X 4 V2.01.14
Price
N/A
6324
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A

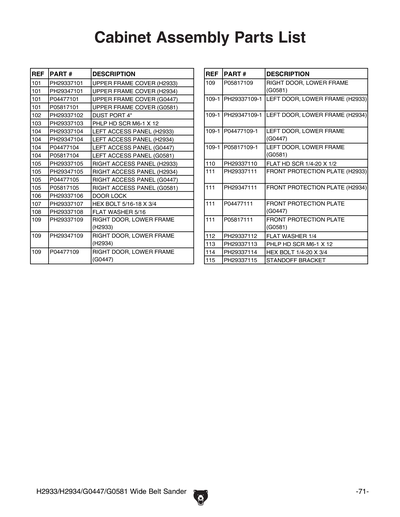

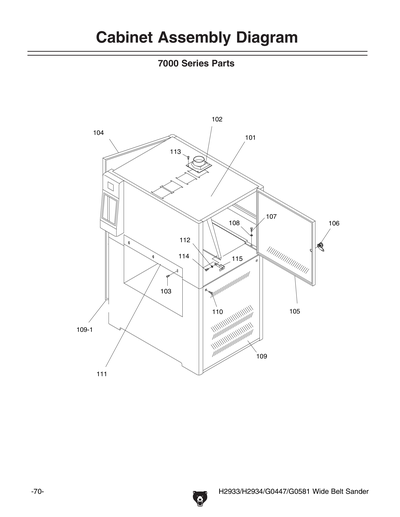

7101
UPPER FRAME COVER V1
Price
N/A
7101V2
UPPER FRAME COVER V2.01.22
7102
***USE PH29337102***
7103
***USE PS14M***
7104
ACCESS PANEL LEFT
7105
ACCESS PANEL RIGHT
7106
***USE PH29337106***
7107
***USE PB07***
7108
***USE PW07***
7109
DOOR RIGHT LOWER FRAME
7109-1
DOOR LEFT LOWER FRAME
7110
***USE PFH03***
7111
FRONT PROTECTIONAL PLATE
7112
***USE PW06***
7113
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
7115
STANDOFF BRACKET
Price
N/A

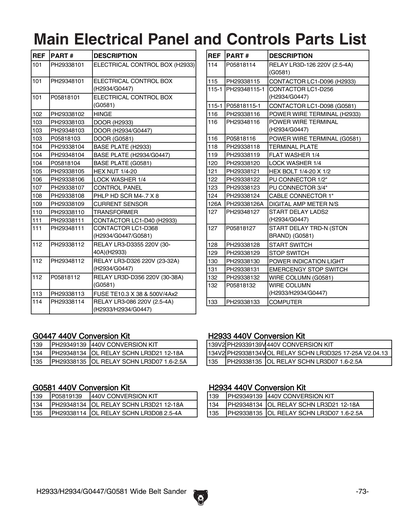

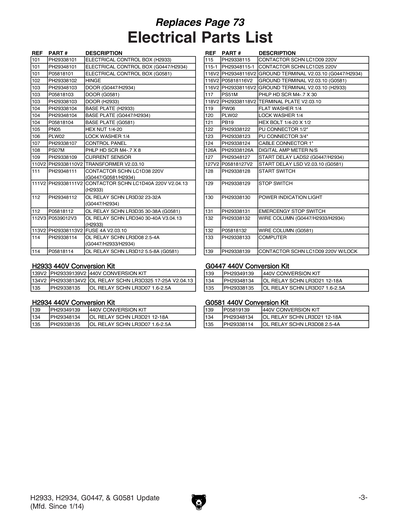

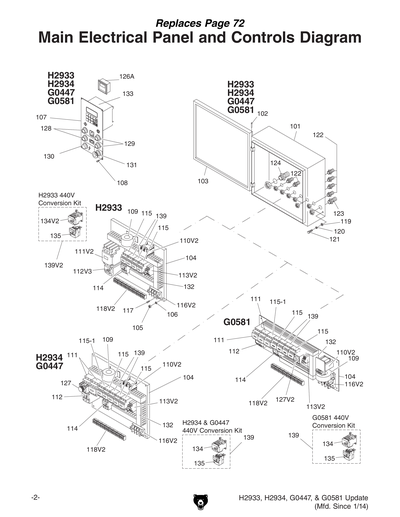

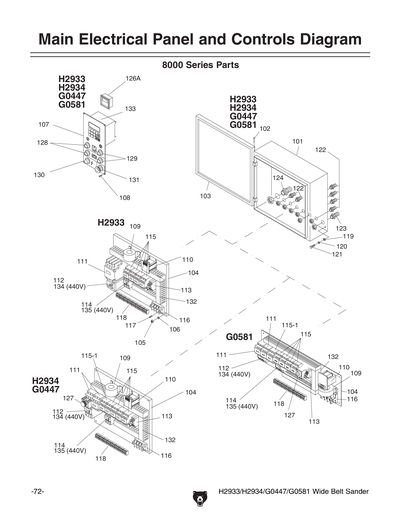

8101
ELECTRICAL CONTROL BOX
8102
***USE PH29338102***
8103
DOOR
8104
BASE PLATE
8105
***USE PN05***
8106
***USE PLW02***
8107
*DISCD*CONTROL PANEL
Price
N/A
8108
***USE PS07M***
8109
PROPORTIONAL CURRENT DEVICE
Price
N/A
8110
TRANSFORMER 250VA 440V-200/220V
Price
N/A
8110V2
TRANSFORMER 250VA 440V-200/220V
Price
N/A
8111
CONTACTOR SCHN LC1D38 220V
8111-1
***USE PH29348111***
8111-2
CONTACTOR SCHN LC1D25 220V
Price
N/A
8112
OL RELAY SCHN LR3D32 23-32A
8113
FUSE 4A GL CT 2PC V1.07.05
Price
N/A
8113V2
FUSE 4A V2.03.10
Price
N/A
8114
***USE PH29338114***
8115
***USE PH29338115***
8115-1
CONTACTOR SCHN LC1D25 220V
8115-2
CONTACTOR LC1D096 TE 220V
8115-3
EMERGENCY BRAKE CONTACTOR TE 220V
8115L
MAGNETIC CONTACTOR LC1-096 220V TE W/LCK
8116
GROUND TERMINAL V1.04.05
8116V2
GROUND TERMINAL V2.03.10
8117
***USE PS51M***
8118
***USE PH29338118***
8119
***USE PW06***
8120
***USE PLW02***
8121
***USE PB19***
8122
PU CONNECTOR 1/2"
8123
***USE PH29338123***
8124
***USE PH29338124***
8126
AMP METER
8126A
***USE PH29338126A***
8127
STAR/DELTA TIMER SCHNEIDER LADS2
8128
***USE P05398128-1***
Price
N/A
8128-1
START SWITCH
Price
N/A
8128-2
START SWITCH
Price
N/A
8129
E-STOP BUTTON 250V 10A
Price
N/A
8129-1
STOP SWITCH
8129-2
BUTTON SWITCH, YK 10A 250V RED
Price
N/A
8130
***USE P99798130***
8131
***USE P05278131***
8132
***USE PH29338132***
8133
***USE PH29338133***
8134
OL RELAY SCHN LR3D21 12-18A
8135
***USE P0539014-1***
Price
N/A
8139
CONTACTOR SCHN LC1D09 220V W/LOCK
Price
N/A

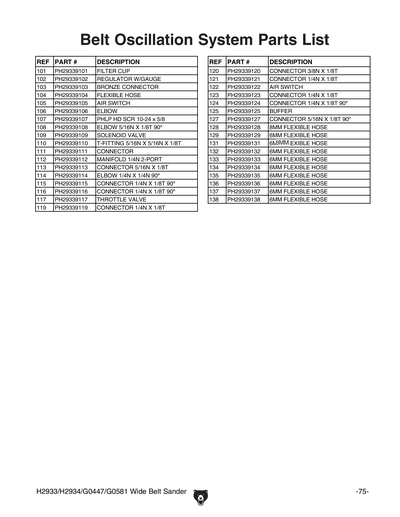

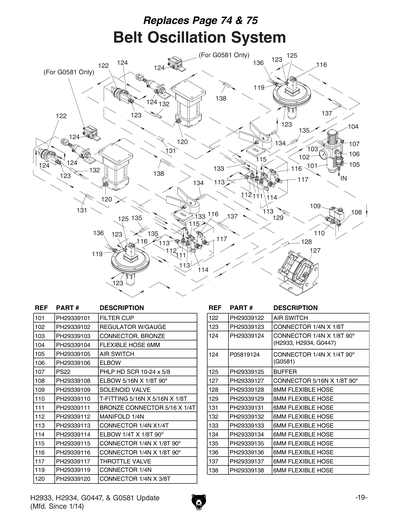

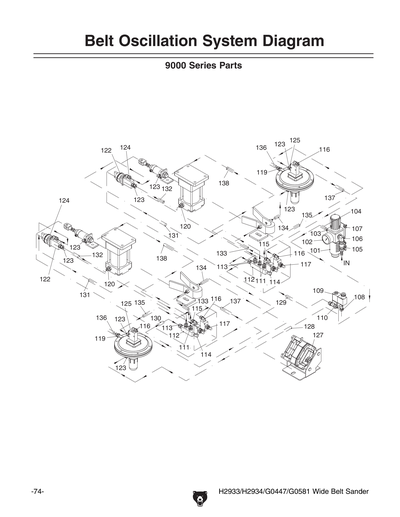

9101
FILTER CUP AND REGULATOR W/ GAUGE
Price
N/A
9102
FILTER CUP AND REGULATOR W/ GAUGE
Price
N/A
9103
***USE PH29339103***
9104
FLEXIBLE HOSE 8MM
Price
N/A
9105
***USE PH29339105***
9106
***USE PH29339106***
9107
***USE PS22***
9108
***USE PH29339108***
9109
***USE PH29339109***
9110
T-FITTING 5/16N X 5/16N X 1/8T
Price
N/A
9111
***USE PH29339111***
9112
***USE PH29339112***
9113
***USE PH29339113***
9114
***USE PH29339114***
9115
***USE PH29339115***
9116
***USE PH29339116***
9117
THROTTLE VALVE
Price
N/A
9118
PLASTIC CONNECTOR
9119
BRONZE CONNECTOR
9120
PLASTIC CONNECTOR
9121
PLASTIC CONNECTOR
9122
AIR SWITCH
Price
N/A
9123
***USE PH29339123***
9124
***USE PH29339124***
9125
***USE PH29339125***
9126
MULTIPLE HOLE CONNECTOR
9127
***USE PH29339127***
9128
FLEXIBLE HOSE 8MM
Price
N/A
9129
FLEXIBLE HOSE 8MM
Price
N/A
9131
***USE PH29339131***
9132
***USE PH29339132***
9133
***USE PH29339133***
9134
***USE PH29339134***
9135
***USE PH29339135***
9136
FLEXIBLE HOSE
9137
FLEXIBLE HOSE
9138
FLEXIBLE HOSE
9139
440V CONVERSION KIT
9139-1
RELAY LR3D-216 12-18A
9139-2
OL RELAY SCHN LR3D07 1.6-2.5A
Price
N/A
9140
MANIFOLD 1/4N 3-PORT
Price
N/A

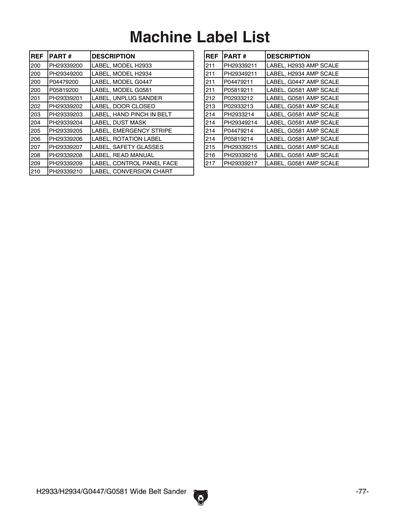

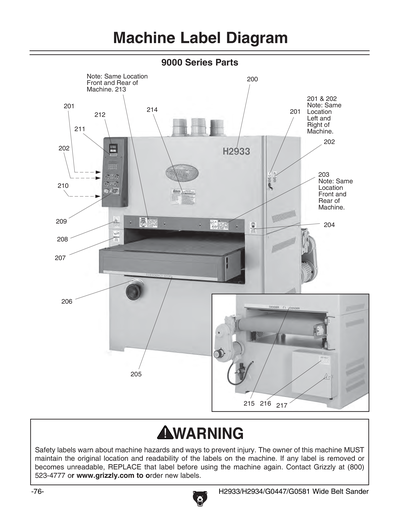

9200
MODEL NUMBER LABEL
9201
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
9202
DONT OPEN 2W X 3.3H
Price
N/A
9203
SANDER BELT PINCH 4W X 2.1H
Price
N/A
9204
***USE PLABEL-32***
9205
***USE P05819205***
9206
*DISCD*LABEL, ROTATION LABEL
Price
N/A
9207
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
9208
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
9209
***USE PH29339209***
9210
MM CONVERSION CHART 3.6W X 5.5H
Price
N/A
9212
***USE PH29339212***
9213
***USE PLABEL-17A***
9214
MACHINE DATA LABEL
9215
***USE P05819215***
9216
***USE PH29339216***
9217
***USE PLABEL-14***
MANUAL
MANUAL FOR H2933 11/05
Price
N/A
