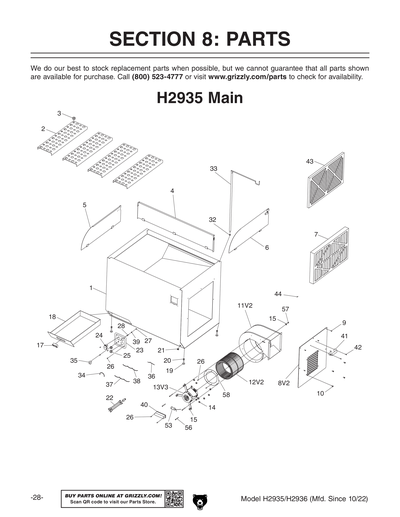

Parts for H2935 23" x 31" Downdraft Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MAIN BASE
2
DUST COLLECTING PLATE 21 IN
3
***USE PH2936003***
4
CENTER PANEL
5
LEFT PANEL
6
RIGHT PANEL
7
***USE H5838***
8
OUTLET PLATE V1.02.03
8V2
***USE PH2936008V2***
9
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
10
***USE PCAP04***
11
FAN HOUSING V1.02.03
Price
N/A
11V2
FAN HOUSING V2.03.10
Price
N/A
12
*DISCD*METAL IMPELLER V1.02.03
Item is no longer available
Price
N/A
12V2
***USE PH2936012V2***
13
MOTOR 1/3HP 120V 1-PH V3.06.16
Price
N/A
13V2
***USE PH2935013V3***
13V3
MOTOR 1/3HP 120V 1-PH V3.06.16
14
***USE PH2936014***
15
***USE PW06***
16
***USE PN05***
17
HANDLE
Price
N/A
18
DRAWER
Price
N/A
19
FOOT PAD SCREW 3/8-16 X 2
Price
N/A
20
***USE PN08***
21
***USE PH2936021***
22
***USE PH2936022***
23
***USE PH2936023***
24
***USE G8988***
25
***USE PH2936025***
26
***USE PS08***
27
***USE PN07***
28
***USE PS03***
29
***USE PH2936029***
32
***USE PN02***
33
***USE PH2936033***
34
***USE PH2936034***
35
***USE PH2936035***
36
***USE PH2936031***
37
***USE PH2936029***
38
***USE PH2936030***
39
***USE PTLW01***
40
CAPACITOR COVER
Price
N/A
41
HANDLE
Price
N/A
42
***USE PS12***
43
***USE H2452***
44
***USE PH2936043***
45

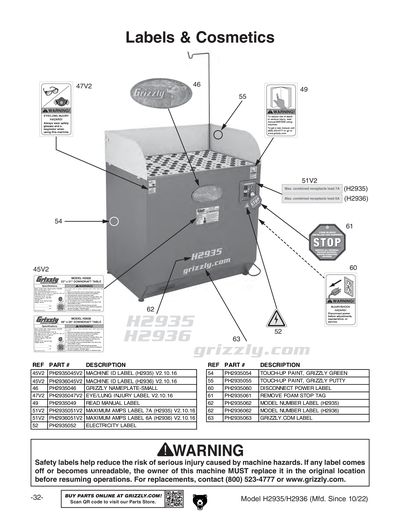

MACHINE ID LABEL V1
45V2
MACHINE ID LABEL CSA V2.02.12
46
***USE G8588***
47
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
47V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
48
DUST MASK 2W X 3.3H V2.05.06
Price
N/A
49
***USE PLABEL-12A***
50
***USE PH2936050***
51
MAXIMUM AMPS LABEL 3.5A V1
51V2
MAXIMUM AMPS LABEL 7A V2.10.16
52
***USE PLABEL-14***
53
R CAPACITOR 45M 250V 2 X 2-1/2
54
N/S GRIZZLY GREEN G1023S
Price
N/A
55
***USE PPAINT-11***
56
***USE PB31***
57
***USE PCAP68M***
58
INLET COVER
Price
N/A
60
DISCONNECT 110V 2W X 3.3H
Price
N/A
61
REMOVE FOAM STOP TAG
62
MODEL NUMBER LABEL
63
GRIZZLY.COM LABEL
MAN
MANUAL H2935/36 MFD-02.03-03.09 V1.05.06
MANV2
MANUAL H2935/36 MFD-04.09-01.12 V2.08.09
MANV3
MANUAL H2935/36 MFD-02.12-05.16 V3.01.12
MANV4
MAN H2935/2936 MFD-06.16-09.22+ V4.05.22
MANV5
MANUAL H2935/H2936 MFD-10.22+ V5.01.23
