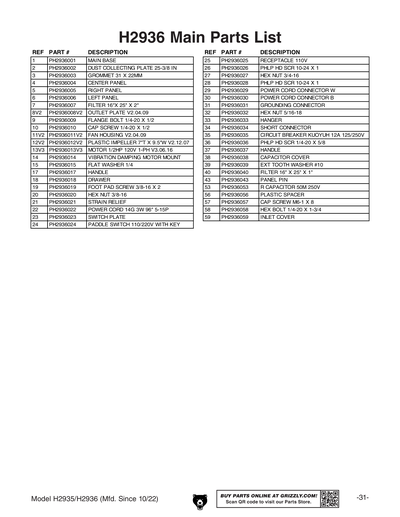

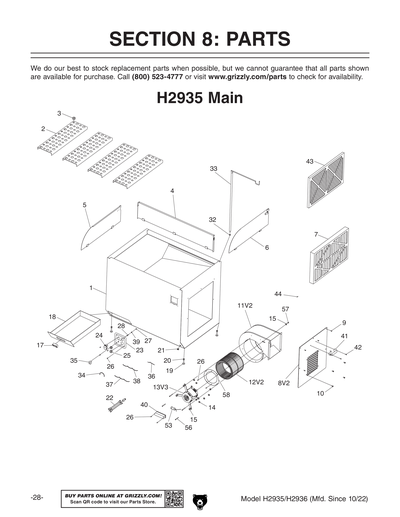

Parts for H2936 28" x 39" Downdraft Table

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MAIN BASE
2
BIG DUST COLLECTING PLATE
Price
N/A
3
GROMMET 31 X 22MM
4
CENTER PANEL
5
RIGHT PANEL
Price
N/A
6
LEFT PANEL
Price
N/A
7
Now: H4938
16" x 25" x 2" Filter for H2936
Price
N/A
8
OUTLET PLATE V1.02.03
8V2
OUTLET PLATE V2.04.09
9
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
10
***USE PCAP04***
11
FAN HOUSING V1.02.03
11V2
FAN HOUSING V2.03.10
Price
N/A
12
*DISCD*METAL IMPELLER 7 X 9.5 V1.02.03
Item is no longer available
Price
N/A
12A
***USE PH2936012V2***
12V2
IMPELLER PLASTIC 9-1/4 X 6-1/4" V2.03.10
Price
N/A
13
*DISCD*MOTOR 1/2HP 110V 1-PH V1.02.03
Item is no longer available
Price
N/A
13V2
***USE PH2936013V3***
13V3
MOTOR 1/2HP 120V 1-PH V3.06.16
14
VIBRATION DAMPING MOTOR MOUNT
15
***USE PW06***
16
***USE PN05***
17
HANDLE
18
DRAWER
Price
N/A
19
FOOT PAD SCREW 3/8-16 X 2
20
***USE PN08***
21
STRAIN RELIEF
22
POWER CORD 14G 3W 96" 5-15P
23
SWITCH PLATE
24
***USE G8988***
25
RECEPTACLE 110V
26
***USE PS03***
27
***USE PN03***
28
***USE PS03***
29
POWER CORD CONNECTOR W
30
POWER CORD CONNECTOR B
31
GROUNDING CONNECTOR
32
***USE PN02***
33
HANGER
34
SHORT CONNECTOR
35
CIRCUIT BREAKER KUOYUH 12A 125/250V
36
***USE PS12***
37
GEARBOX COVER HANDLE
Price
N/A
38
CAPACITOR COVER
Price
N/A
39
***USE PTLW01***
40
***USE H4961***
41
*DISCD*HANDLE
Item is no longer available
Price
N/A
42
***USE PS12***
43
PANEL PIN
45
MACHINE ID LABEL V1
45V2
MACHINE ID LABEL CSA V2.02.12
46
***USE G8588***
47
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
47V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
48
DUST MASK 2W X 3.3H V2.05.06
Price
N/A
49
***USE PLABEL-12A***
50
NO HANDS IN OUTLET
51
***USE PH293651V2***
Price
N/A
51V2
MAXIMUM AMPS LABEL 6A V2.10.16
52
***USE PLABEL-14***
53
R CAPACITOR 50M 250V
54
***USE PPAINT-1***
55
***USE PPAINT-11***
56
PLASTIC SPACER
57
***USE PCAP68M***
58
***USE PB88***
59
INLET COVER
60
DISCONNECT 110V 2W X 3.3H
Price
N/A
61
REMOVE FOAM STOP TAG
Price
N/A
62
MODEL NUMBER LABEL
63
GRIZZLY.COM LABEL
Price
N/A
MAN
***USE PH2935MAN***
MANV2
MANUAL H2935/36 MFD-04.09-01.12 V2.08.09
Price
N/A
MANV3
MANUAL H2935/36 MFD-02.12-05.16 V3.01.12
Price
N/A
MANV4
MAN H2935/2936 MFD-06.16-09.22+ V4.05.22
Price
N/A
MANV5
MANUAL H2935/H2936 MFD-10.22+ V5.01.23
Price
N/A
