Parts for H3184 - Compact Bender System - Floor Model

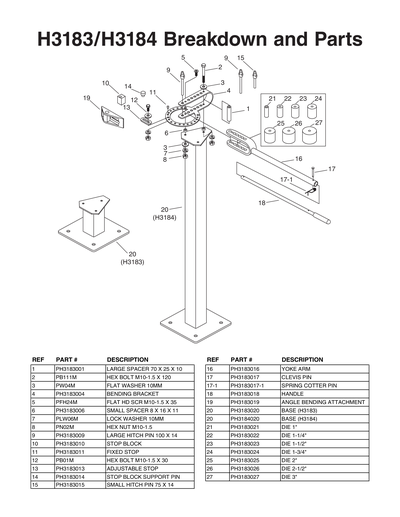

Part Diagram for H3184
Part Diagram for H3184

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SPACER 70 X 25 X 10
Price
N/A
2
HEX BOLT M10-1.5 X 120
Price
N/A
3
FLAT WASHER 10MM
Price
N/A
4
BENDING BRACKET
Price
N/A
5
FLAT HD SCR M10-1.5 X 35
Price
N/A
6
SMALL SPACER 8 X 16 X 11
Price
N/A
7
LOCK WASHER 10MM
Price
N/A
8
HEX NUT M10-1.5
Price
N/A
9
HITCH PIN 14 X 100
Price
N/A
10
STOP BLOCK
Price
N/A
11
FIXED STOP
Price
N/A
12
HEX BOLT M10-1.5 X 30
Price
N/A
13
ADJUSTABLE STOP
Price
N/A
14
Price
$1.90
15
SMALL HITCH PIN 75 X 14
Price
N/A
16
HANDLE EXTENSION ARM
Price
N/A
17
CLEVIS PIN
Price
N/A
17-1
HAIRPIN COTTER PIN
Price
N/A
18
HANDLE
Price
N/A
19
SHARP ANGLE BENDING ATTACHMENT
Price
N/A
20
Price
$77.65
21
DIE 1"
Price
N/A
22
DIE 1-1/4"
Price
N/A
23
DIE 1-1/2"
Price
N/A
24
DIE 1-3/4"
Price
N/A
25
DIE 2"
Price
N/A
26
DIE 2-1/2"
Price
N/A
27
DIE 3"
Price
N/A
MANUAL
MANUAL FOR H3183 04/06
Price
N/A
