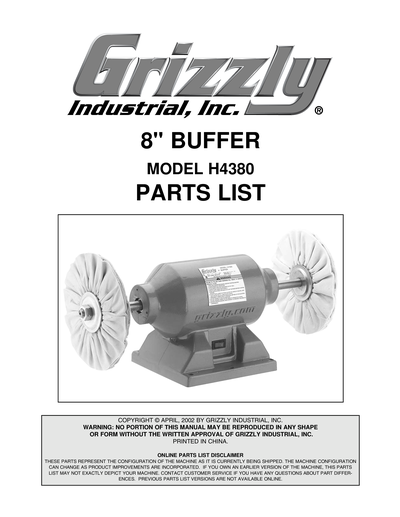

Parts for H4380 - 8" Buffer w/ 5/8" Arbor

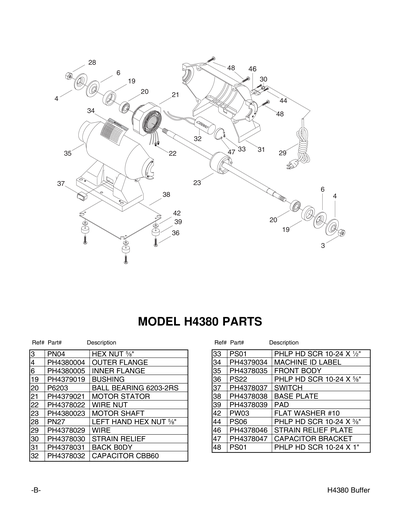

Part Diagram for H4380
Part Diagram for H4380
Part Diagram for H4380
Part Diagram for H4380

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
3
*DISCD*FLANGE NUT M16-2
Item is no longer available
Price
N/A
4
*DISCD*OUTER FLANGE
Item is no longer available
Price
N/A
5
*DISCD*FLANGE
Price
N/A
6
*DISCD*FLANGE
Price
N/A
19
*DISCD*BUSHING
Price
N/A
20
BALL BEARING 6203-2RS
Price
N/A
21
*DISCD*MOTOR STATOR
Price
N/A
22
*DISCD*WIRE NUT
Price
N/A
23
Price
$10.10
28
*DISCD*FLANGE NUT M16-2 LH
Item is no longer available
Price
N/A
29
*DISCD*WIRE
Price
N/A
30
*DISCD*STRAIN RELIEF
Price
N/A
31
*DISCD*BACK BODY
Price
N/A
32
*DISCD*CAPACITOR CBB60
Price
N/A
33
PHLP HD SCR 10-24 X 1/2
Price
N/A
34
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
35
*DISCD*FRONT BODY
Price
N/A
36
PHLP HD SCR 10-24 X 5/8
Price
N/A
37
*DISCD*SWITCH
Price
N/A
38
*DISCD*BASE PLATE
Price
N/A
39
*DISCD*PAD
Price
N/A
42
FLAT WASHER #10
Price
N/A
44
PHLP HD SCR 10-24 X 3/8
Price
N/A
46
*DISCD*STRAIN RELIEF PLATE
Price
N/A
47
*DISCD*CAPACITOR BRACKET
Price
N/A
48
PHLP HD SCR 10-24 X 1/2
Price
N/A
MANUAL
*DISCD*MANUAL FOR H4380 04/02
Price
$13.25
