Parts for H5502 Metal Bending Tool Set

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

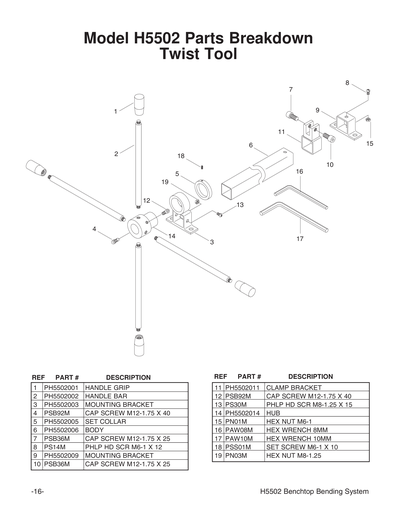

1
HANDLE GRIP
2
HANDLE BAR
3
MOUNTING BRACKET
4
CAP SCREW M12-1.75 X 40
Price
N/A
5
SET COLLAR
6
BODY
7
CAP SCREW M12-1.75 X 25
Price
N/A
8
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
9
MOUNTING BRACKET
10
CAP SCREW M12-1.75 X 25
Price
N/A
11
CLAMP BRACKET
12
CAP SCREW M12-1.75 X 40
Price
N/A
13
Now: PS16M
PHLP HD SCR M8-1.25 X 16
Price
N/A
14
HUB
15
Now: PN01M
HEX NUT M6-1
Price
N/A
16
HEX WRENCH 8MM
Price
N/A
17
HEX WRENCH 10MM
Price
N/A
18
SET SCREW M6-1 X 10
Price
N/A
19
Now: PN03M
HEX NUT M8-1.25
Price
N/A

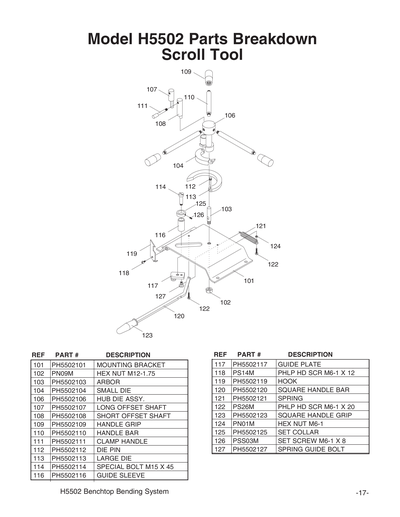

101
MOUNTING BRACKET
102
Now: PN09M
HEX NUT M12-1.75
Price
N/A
103
ARBOR
104
SMALL DIE
106
HUB DIE ASSEMBLY
107
OFFSET SHAFT LONG
108
SHORT OFFSET SHAFT
109
HANDLE GRIP
110
HANDLE BAR
111
CLAMP HANDLE
112
DIE PIN
113
LARGE DIE
114
GUIDE SLEEVE BOLT M15 X 45
115
*DISCD*SPACER 2PC SET
Item is no longer available
Price
N/A
115-1
*DISCD*SPACER 2PC SET
Price
N/A
115-2
*DISCD*SPACER 2PC SET
Price
N/A
116
GUIDE SLEEVE
117
GUIDE PLATE
118
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
119
HOOK
120
SQUARE HANDLE BAR
121
SPRING 12.5 X 83 X 1.5
122
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
123
SQUARE HANDLE GRIP
124
Now: PN01M
HEX NUT M6-1
Price
N/A
125
SET COLLAR
126
SET SCREW M6-1 X 8
Price
N/A
127
SPRING GUIDE BOLT

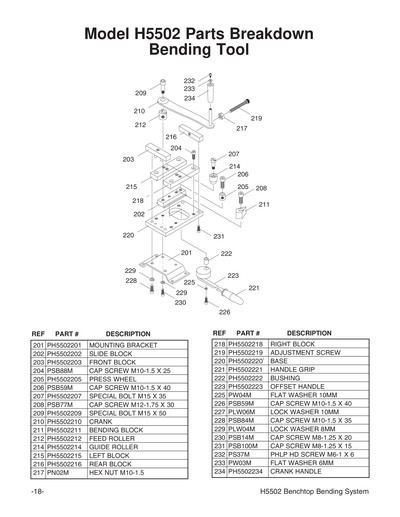

201
MOUNTING BRACKET
202
SLIDE BLOCK
203
FRONT BLOCK
204
CAP SCREW M10-1.25 X 25
Price
N/A
205
PRESS WHEEL
206
CAP SCREW M10-1.5 X 40
Price
N/A
207
GUIDE ROLLER BOLT M15 X 35
208
CAP SCREW M12-1.75 X 30
Price
N/A
209
CRANK BOLT M15 X 50
210
CRANK
211
BENDING BLOCK
212
FEED ROLLER
214
GUIDE ROLLER
215
BLOCK LEFT
216
REAR BLOCK
217
Now: PN02M
HEX NUT M10-1.5
Price
N/A
218
BLOCK RIGHT
219
ADJUSTMENT SCREW
220
BASE
221
HANDLE GRIP
222
BUSHING
223
OFFSET HANDLE
224
OFFSET HANDLE
Price
N/A
225
Now: PW04M
FLAT WASHER 10MM
Price
N/A
226
CAP SCREW M10-1.5 X 40
Price
N/A
227
LOCK WASHER 10MM
Price
N/A
228
CAP SCREW M10-1.5 X 35
Price
N/A
229
LOCK WASHER 8MM
Price
N/A
230
CAP SCREW M8-1.25 X 20
Price
N/A
231
CAP SCREW M8-1.25 X 15
Price
N/A
232
Now: PS37M
PHLP HD SCR M6-1 X 6
Price
N/A
233
Now: PW03
FLAT WASHER #10
Price
N/A
234
CRANK HANDLE
315
*DISCD*SPACER 2PC SET
Price
N/A
