Parts for H5527 - 18-Gauge Brad Nailer Kit

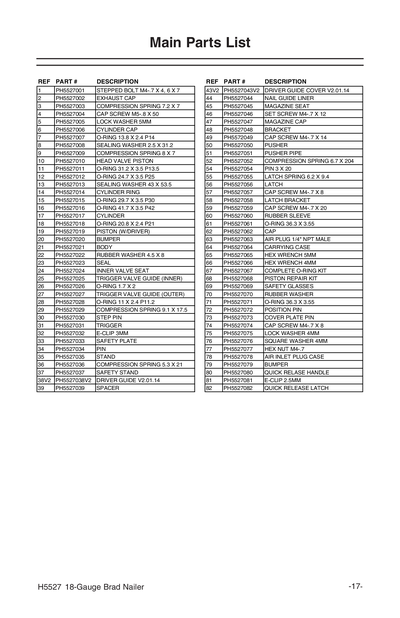

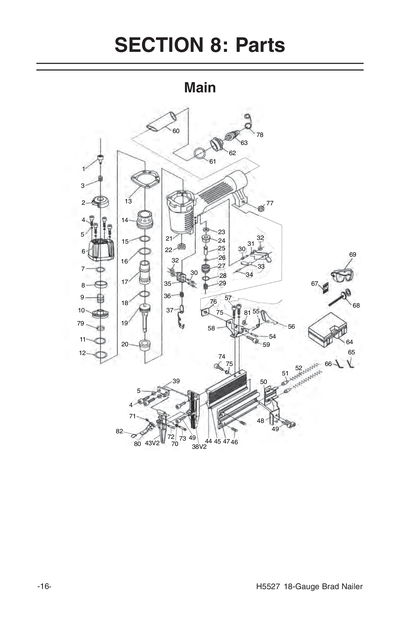

Part Diagram for H5527
Part Diagram for H5527
Part Diagram for H5527
Part Diagram for H5527

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD* STEPPED BOLT M4-.7 X 4, 6 X 7
Price
$1.49
2
*DISCD* EXHAUST CAP
Price
$1.49
3
*DISCD* COMPRESSED SPRING 7.2 X 7
Price
$1.49
4
CAP SCREW M5-.8 X 20
Price
N/A
5
LOCK WASHER 5/16
Price
N/A
6
*DISCD* CYLINDER CAP
Price
$16.10
7
O-RING 13.8 X 2.4 P14
Price
N/A
8
*DISCD* SEALING WASHER 2.5 X 31.2
Price
$1.49
9
*DISCD* COMPRESSION SPRING 8 X 7
Price
$1.49
10
*DISCD* HEAD VALVE PISTON
Price
$4.60
11
*DISCD* O-RING 31.2 X 3.5 P13.5
Price
$1.49
12
O-RING 24.7 X 3.5 P25
Price
N/A
13
*DISCD* SEALING WASHER 43 X 53.5
Price
$2.60
14
*DISCD* CYLINDER RING
Price
$1.49
15
O-RING 29.7 X 3.5 P30
Price
N/A
16
*DISCD* O-RING 41.7 X 3.5 P42
Price
$1.49
17
*DISCD* CYLINDER
Price
$9.20
18
*DISCD* O-RING 20.8 X 2.4 P21
Price
$1.49
19
*DISCD* PISTON W/DRIVER
Price
$2.60
20
*DISCD* BUMPER
Price
$1.49
21
*DISCD* BODY
Item is no longer available
Price
N/A
22
*DISCD* RUBBER WASHER 4.5 X 8
Price
$1.49
23
*DISCD* SEAL
Price
$1.49
24
*DISCD* INNER VALVE SEAT
Price
$1.49
25
*DISCD* TRIGGER VALVE GUIDE (INNER)
Price
$1.49
26
*DISCD* O-RING 2.96 X 1.7
Price
N/A
27
*DISCD* TRIGGER VALVE GUIDE (OUTER)
Price
$1.49
28
O-RING 11 X 2.4 P11.2
Price
N/A
29
*DISCD* COMPRESSED SPRING 9.1 X 17.5
Price
$1.49
30
*DISCD* STEP PIN
Price
$1.49
31
*DISCD* TRIGGER
Price
$1.49
32
E-CLIP 3MM
Price
N/A
33
*DISCD* SAFETY PLATE W/PIN
Price
$1.49
34
*DISCD* SAFETY PLATE W/PIN
Price
N/A
35
*DISCD* STAND
Item is no longer available
Price
N/A
36
*DISCD* SPRING 5.3 X 21
Price
$1.49
37
*DISCD* SAFETY STAND
Price
$1.49
38
*DISCD* DRIVER GUIDE V1
Item is no longer available
Price
N/A
38V2
*DISCD* DRIVER GUIDE V2.01.14
Item is no longer available
Price
N/A
39
*DISCD* SPACER
Item is no longer available
Price
N/A
40
CAP SCREW M5-.8 X 20
Price
N/A
41
CAP SCREW M4-.7 X 12
Price
N/A
42
CAP SCREW M4-.7 X 10
Price
N/A
43
*DISCD* DRIVER GUIDE COVER
Price
$11.70
43V2
*DISCD* DRIVER GUIDE COVER V2.01.14
Price
$11.80
44
*DISCD* NAIL GUIDE LINER
Price
$1.49
45
*DISCD* MAGAZINE SEAT
Price
$3.20
46
SET SCREW M4-.7 X 16
Price
N/A
47
*DISCD* MAGAZINE CAP
Price
$2.05
48
*DISCD* BRACKET
Price
$1.49
49
CAP SCREW M4-.7 X 14
Price
N/A
50
*DISCD* PUSHER
Price
$1.49
51
*DISCD* PUSHER PIPE
Price
$1.49
52
*DISCD* COMPRESSED SPRING 6.7 X 204
Price
$1.49
53
LOCK NUT M4-.7
Price
N/A
54
*DISCD* PIN 3 X 20
Price
$1.49
55
*DISCD* LATCH SPRING 6.2 X 9.4
Price
$1.49
56
*DISCD* LATCH
Item is no longer available
Price
N/A
57
CAP SCREW M4-.7 X 8
Price
N/A
58
*DISCD* LATCH BRACKET
Item is no longer available
Price
N/A
59
CAP SCREW M4-.7 X 16
Price
N/A
60
*DISCD* RUBBER SLEEVE
Price
$1.49
61
O-RING 35.7 X 3.5 P36
Price
N/A
62
*DISCD* CAP
Price
$1.49
63
*DISCD* AIR PLUG 1/4" NPT MALE
Price
$1.49
64
*DISCD* CARRYING CASE
Price
$2.90
65
HEX WRENCH 5MM
Price
N/A
66
HEX WRENCH 4MM
Price
N/A
67
*DISCD* COMPLETE O-RING KIT
Price
$7.80
68
*DISCD* PISTON REPAIR KIT
Price
$7.80
69
*DISCD* SAFETY GLASSES
Item is no longer available
Price
N/A
70
*DISCD* RUBBER WASHER
Item is no longer available
Price
N/A
71
*DISCD* O-RING 36.3 X 3.55
Item is no longer available
Price
N/A
72
*DISCD* POSITION PIN
Price
$1.49
73
*DISCD* COVER PLATE PIN
Item is no longer available
Price
N/A
74
*DISCD* CAP SCREW M4-.7 X 8
Item is no longer available
Price
N/A
75
LOCK WASHER 4MM
Price
N/A
76
*DISCD* SQUARE WASHER 4MM
Item is no longer available
Price
N/A
77
HEX NUT M4-.7
Price
N/A
78
*DISCD* AIR INLET PLUG CASE
Price
$1.49
79
*DISCD* BUMPER
Item is no longer available
Price
N/A
80
*DISCD* QUICK RELASE HANDLE
Item is no longer available
Price
N/A
81
E-CLIP 2.5MM
Price
N/A
MANUAL
MANUAL FOR H5527 08/03
Price
$21.95
