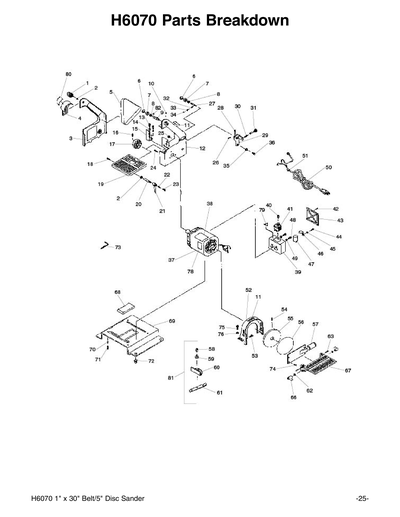

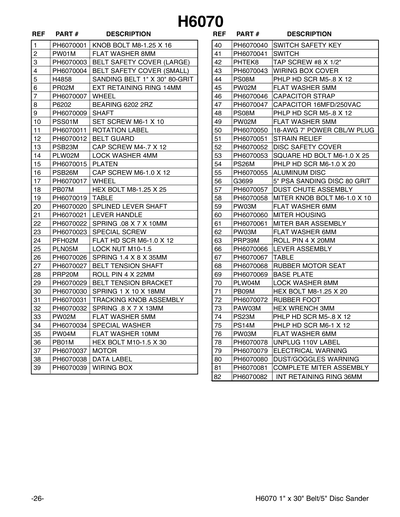

Parts for H6070 1" x 30" Belt/5" Disc Combo Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
KNOB BOLT M8-1.25 X 16
2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
3
BELT SAFETY COVER LARGE
4
BELT SAFETY COVER SMALL
5
Now: H4858
1" x 30" A/O Sanding Belt 80 Grit, 10 pk.
Price
N/A
6
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
7
WHEEL
8
BALL BEARING 6202-2RS
Price
N/A
9
SHAFT
10
SET SCREW M6-1 X 10
Price
N/A
11
ROTATION LABEL
12
BELT GUARD
13
CAP SCREW M4-.7 X 12
Price
N/A
14
LOCK WASHER 4MM
Price
N/A
15
PLATEN
16
CAP SCREW M6-1 X 12
Price
N/A
17
WHEEL
18
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
19
TABLE
20
SPLINED LEVER SHAFT
21
LEVER HANDLE
22
SPRING .08 X 7 X 10MM
23
TABLE SCREW
24
FLAT HD SCR M6-1 X 12
Price
N/A
25
LOCK NUT M10-1.5
Price
N/A
26
SPRING 1.4 X 8 X 35MM
27
BELT TENSION SHAFT
28
ROLL PIN 4 X 22
Price
N/A
29
BELT TENSION BRACKET
30
SPRING 1 X 10 X 18MM
31
TRACKING KNOB ASSEMBLY
32
SPRING 0.8 X 7 X 13MM
33
Now: PW02M
FLAT WASHER 5MM
Price
N/A
34
BELT GUARD WASHER
35
Now: PW04M
FLAT WASHER 10MM
Price
N/A
36
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
37
MOTOR 1/3HP 110V 1-PH
38
DATA LABEL
39
WIRING BOX
40
SWITCH
Price
N/A
41
SWITCH
42
TAP SCREW #8 X 1/2
Price
N/A
43
WIRING BOX COVER
44
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
45
Now: PW02M
FLAT WASHER 5MM
Price
N/A
46
CAPACITOR STRAP
47
R CAPACITOR 16M 250V 1-1/4 X 2-1/2
48
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
49
Now: PW02M
FLAT WASHER 5MM
Price
N/A
50
POWER CABLE W/PLUG 7 18AWG
51
STRAIN RELIEF
52
DISC SAFETY COVER
53
SQUARE HD BOLT M6-1 X 25
54
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
55
ALUMINUM DISC
56
Now: D1301
5" A/O Sanding Disc, 80 Grit PSA, 5 Pk.
Price
N/A
57
DUST CHUTE ASSEMBLY
58
MITER KNOB BOLT M6-1 X 10
59
Now: PW03M
FLAT WASHER 6MM
Price
N/A
60
MITER HOUSING
61
MITER BAR ASSEMBLY
62
Now: PW03M
FLAT WASHER 6MM
Price
N/A
63
ROLL PIN 4 X 20
Price
N/A
66
LEVER ASSY
67
TABLE
68
RUBBER MOTOR SEAT
69
BASE PLATE
70
LOCK WASHER 8MM
Price
N/A
71
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
72
RUBBER FOOT
73
HEX WRENCH 3MM
Price
N/A
74
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
75
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
76
Now: PW03M
FLAT WASHER 6MM
Price
N/A
78
UNPLUG 110V LABEL
79
ELECTRICAL WARNING
80
DUST/GOGGLES WARNING
81
COMPLETE MITER ASSEMBLY
82
Now: PR28M
INT RETAINING RING 36MM
Price
N/A
55
ALUMINUM DISC
Price
N/A
