Parts for H6228 - 30 Ton Shop Press

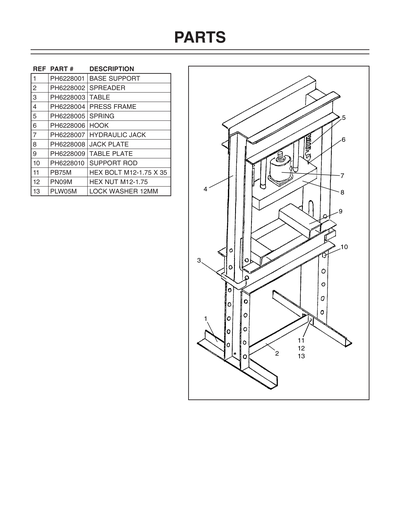

Part Diagram for H6228
Part Diagram for H6228

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*BASE SUPPORT
Item is no longer available
Price
N/A
2
Price
$19.55
3
Price
$96.90
4
Price
$186.05
5
*DISCD*SPRING 6 X 34 X 200
Item is no longer available
Price
N/A
6
Price
$3.45
7
Price
$99.20
7A
*DISCD*COMPLETE JACK & HANDLE ASSY BOX 2
Price
$105.80
8
Price
$85.10
9
Price
$25.90
10
Price
$15.25
11
HEX BOLT M12-1.75 X 35
Price
N/A
12
HEX NUT M12-1.75
Price
N/A
13
LOCK WASHER 12MM
Price
N/A
