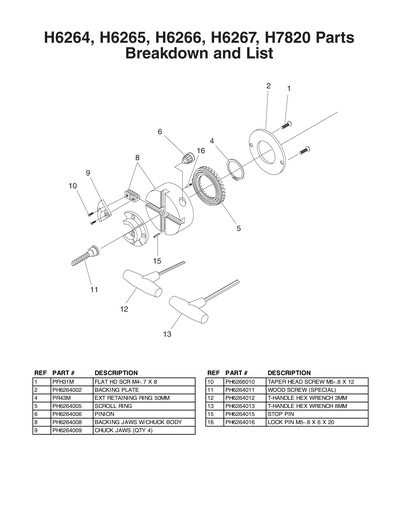

Parts for H6264 4 Jaw Wood Chuck 3/4" x 16 TPI

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
FLAT HD SCR M5-.8 X 10
Price
N/A
2
BACKING PLATE
3
INSERT 3/4-16
4
Now: PR43M
EXT RETAINING RING 50MM
Price
N/A
5
SCROLL RING
6
PINION
7
*DISCD*BACKING JAWS 4PC W/CHUCK BODY
Price
N/A
8
*DISCD*BACKING JAWS 4PC W/CHUCK BODY
9
*DISCD*CHUCK JAWS QTY 4
Item is no longer available
Price
N/A
10
FLAT HD CAP SCR M5-.8 X 12 C10.9
Price
N/A
11
SAFETY CHUCK WOOD SCREW 35MM
12
WRENCH T-HANDLE HEX 3MM
13
WRENCH T-HANDLE HEX 8MM
14
INSERT LEVER
15
STOP PIN
16
LOCK PIN M5-.8 X 6 X 20
