Parts for H6266 - 4 Jaw Wood Chuck 1" x 12 TPI

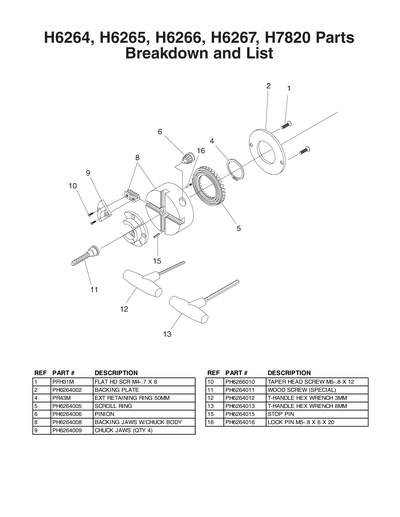

Part Diagram for H6266
Part Diagram for H6266

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
FLAT HD SCR M5-.8 X 10
Price
N/A
2
BACKING PLATE
Price
N/A
3
Price
$15.85
4
EXT RETAINING RING 50MM
Price
N/A
5
SCROLL RING
Price
N/A
6
PINION
Price
N/A
7
*DISCD*BACKING JAWS 4PC W/CHUCK BODY
Price
N/A
8
*DISCD*BACKING JAWS 4PC W/CHUCK BODY
Price
N/A
9
*DISCD*CHUCK JAWS QTY 4
Price
N/A
10
FLAT HD CAP SCR M5-.8 X 12 C10.9
Price
N/A
11
SAFETY CHUCK WOOD SCREW 35MM
Price
N/A
12
WRENCH T-HANDLE HEX 3MM
Price
N/A
13
WRENCH T-HANDLE HEX 8MM
Price
N/A
14
INSERT LEVER
Price
N/A
15
STOP PIN
Price
N/A
16
LOCK PIN M5-.8 X 6 X 20
Price
N/A
