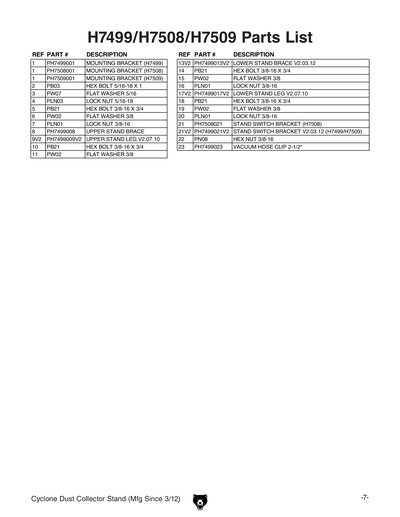

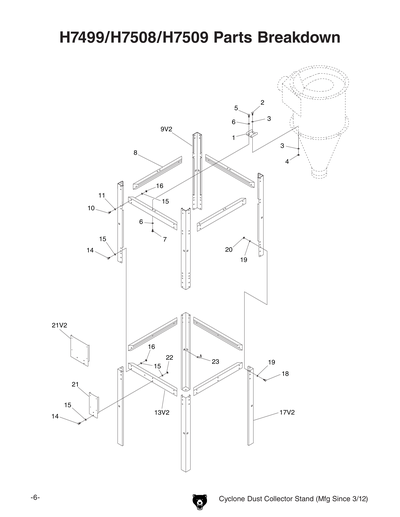

Parts for H7499 Stand For G0440 Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MOUNTING BRACKET
1V2
MOUNTING BRACKET V2.01.15
2
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
3
Now: PW07
FLAT WASHER 5/16
Price
N/A
4
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
5
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
6
Now: PW02
FLAT WASHER 3/8
Price
N/A
7
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
8
UPPER STAND BRACE
9
UPPER STAND LEG V1
9V2
UPPER STAND LEG V2.07.10
10
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
11
Now: PW02
FLAT WASHER 3/8
Price
N/A
12
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
13
*DISCD*STAND BRACE LOWER V1
Item is no longer available
Price
N/A
13V2
LOWER BRACKET BRACE V2.03.12
14
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
15
Now: PW02
FLAT WASHER 3/8
Price
N/A
16
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
17
LOWER STAND LEG V1
17V2
LOWER STAND LEG V2.07.10
18
Now: PB21
HEX BOLT 3/8-16 X 3/4
Price
N/A
19
Now: PW02
FLAT WASHER 3/8
Price
N/A
20
Now: PLN01
LOCK NUT 3/8-16
Price
N/A
21
STAND SWITCH BRACKET V1
Item is no longer available
Price
N/A
21V2
STAND SWITCH BRACKET V2.03.12
22
Now: PN08
HEX NUT 3/8-16
Price
N/A
23
VACUUM HOSE CLIP 2-1/2"
MAN
MANUAL FOR H7499/H7508/H7509 07/10
MANV2
MANUAL FOR H7499/H7508/H7509 4/12
Item is no longer available
Price
N/A
