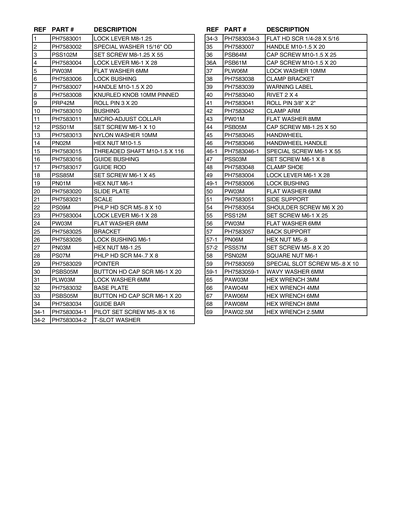

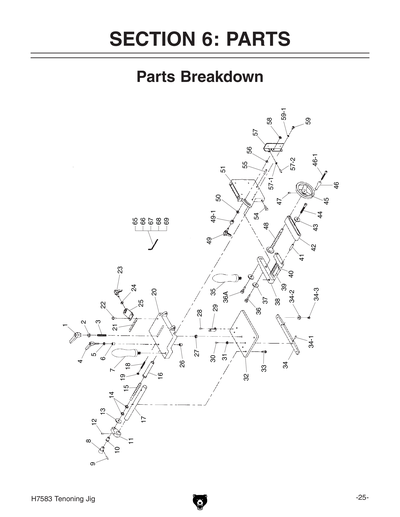

Parts for H7583 Tenoning Jig

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
LOCK LEVER M8-1.25
2
LOCK LEVER WASHER 15/16" OD
3
SET SCREW M8-1.25 X 55
Price
N/A
4
LOCK LEVER M6-1 X 28
5
***USE PW03M***
6
LOCK BUSHING
7
HANDLE M10-1.5 X 20
8
KNURLED KNOB 10MM PINNED
9
***USE PRP42M***
10
BUSHING
11
BRACKET
12
***USE PSS01M***
13
NYLON WASHER 10MM
14
***USE PN02M***
15
THREADED SHAFT M10-1.5 X 116
16
GUIDE BUSHING
17
GUIDE ROD
18
***USE PSS85M***
19
***USE PN01M***
20
SLIDE PLATE
21
SCALE
22
***USE PS09M***
23
***USE PH7583004***
24
***USE PW03M***
25
BRACKET
26
LOCK BUSHING M6-1
27
***USE PN03M***
28
***USE PS07M***
29
POINTER
30
***USE PBHS05M***
31
LOCK WASHER 6MM
Price
N/A
32
BASE PLATE
33
***USE PBHS05M***
34
GUIDE BAR
34-1
PILOT SET SCREW M5-.8 X 16
34-2
T-SLOT WASHER
34-3
FLAT HD SCR 1/4-28 X 5/16
35
HANDLE M10-1.5 X 20
Price
N/A
36
***USE PCAP64M***
36A
CAP SCREW M10-1.5 X 20
Price
N/A
37
***USE PLW06M***
38
CLAMP BRACKET
39
WARNING LABEL
40
***USE PRIV003M***
41
ROLL PIN 3/8 X 2"
42
CLAMP ARM
43
***USE PW01M***
44
***USE PCAP05M***
45
HANDWHEEL
46
HANDWHEEL HANDLE
46-1
HANDWHEEL HANDLE SCREW M6-1 X 55
47
***USE PSS03M***
48
CLAMP SHOE
49
***USE PH7583004***
49-1
LOCK BUSHING
Price
N/A
50
***USE PW03M***
51
SLIDE SUPPORT
54
SHOULDER SCREW M6 X 20
55
***USE PSS12M***
56
***USE PW03M***
57
BACK SUPPORT
57-1
***USE PN06M***
57-2
***USE PSS57M***
58
***USE PSN02M***
59
BACK SUPPORT SLOT SCREW M5-.8 X 10
59-1
WAVY WASHER 6MM
65
HEX WRENCH 3MM
Price
N/A
66
***USE PAW04M***
67
***USE PAW06M***
68
***USE PAW08M***
69
HEX WRENCH 2.5MM
Price
N/A
100
CARTON FOR H7583
101
STYROFOAM FOR H7583
MAN
MANUAL FOR H7583 01/09
