Parts for H7587 - Resaw Fence Complete for 14" Bandsaws

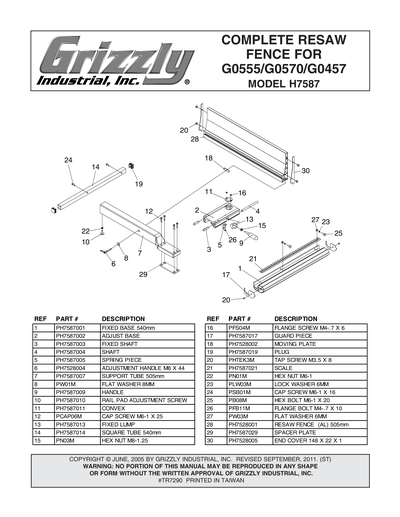

Part Diagram for H7587
Part Diagram for H7587

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$60.40
2
Price
$59.80
3
ALIGNMENT SHAFT
Price
N/A
4
Price
$4.60
5
SPRING PLATE
Price
N/A
6
ADJUSTMENT HANDLE M8 X 44
Price
N/A
7
Price
$81.50
8
FLAT WASHER 8MM
Price
N/A
9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
10
RAIL PAD
Price
N/A
11
Price
$2.60
12
CAP SCREW M6-1 X 25
Price
N/A
13
Price
$8.05
14
Price
$13.80
15
HEX NUT M8-1.25
Price
N/A
16
FLANGE SCREW M4-.7 X 6
Price
N/A
17
Price
$1.75
18
MOVING PLATE
Price
N/A
19
REAR RAIL END CAP
Price
N/A
20
TAP SCREW M3.5 X 8
Price
N/A
21
Price
$5.10
22
HEX NUT M6-1
Price
N/A
23
LOCK WASHER 6MM
Price
N/A
24
CAP SCREW M6-1 X 16
Price
N/A
25
HEX BOLT M6-1 X 20
Price
N/A
26
FLANGE BOLT M4-.7 X 10
Price
N/A
27
FLAT WASHER 6MM
Price
N/A
28
FENCE AL 505MM
Price
N/A
29
Price
$2.25
30
FENCE END PLATE 148 X 22 X 1
Price
N/A
