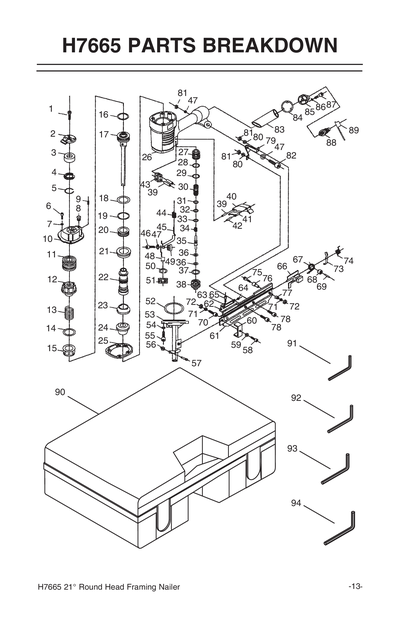

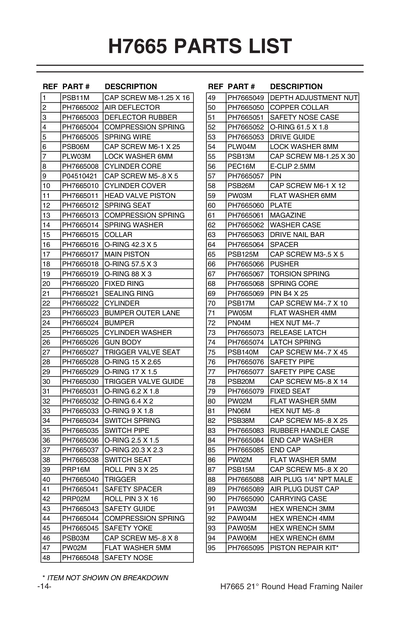

Parts for H7665 21-Degree Framing Nailer

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CAP SCREW M8-1.25 X 16
Price
N/A
2
*DISCD* AIR DEFLECTOR
Item is no longer available
Price
N/A
3
*DISCD* DEFLECTOR RUBBER
4
*DISCD* COMPRESSION SPRING
5
*DISCD* SPRING WIRE
6
CAP SCREW M6-1 X 25
Price
N/A
7
LOCK WASHER 6MM
Price
N/A
8
*DISCD* CYLINDER CORE
9
CAP SCREW M5-.8 X 6
Price
N/A
10
*DISCD* CYLINDER COVER
Item is no longer available
Price
N/A
11
*DISCD* HEAD VALVE PISTON
12
*DISCD* SPRING SEAT
13
*DISCD* COMPRESSION SPRING
Item is no longer available
Price
N/A
14
*DISCD* SPRING WASHER
15
*DISCD* COLLAR
16
O-RING 42.3 X 5
Price
N/A
17
*DISCD* MAIN PISTON
18
*DISCD* O-RING 57.5 X 3
Item is no longer available
Price
N/A
19
O-RING 88 X 3
Price
N/A
20
*DISCD* FIXED RING
21
*DISCD* SEALING RING
22
*DISCD* CYLINDER
Item is no longer available
Price
N/A
23
*DISCD* BUMPER OUTER LANE
24
*DISCD* BUMPER
Item is no longer available
Price
N/A
25
*DISCD* CYLINDER WASHER
Item is no longer available
Price
N/A
26
*DISCD* GUN BODY
27
*DISCD* TRIGGER VALVE SEAT
Item is no longer available
Price
N/A
28
O-RING 15 X 2.65
Price
N/A
29
*DISCD*O-RING 17 X 1.5
Price
N/A
30
*DISCD* TRIGGER VALVE GUIDE
31
*DISCD* O-RING 6.2 X 1.8
32
*DISCD* O-RING 6.4 X 2
33
*DISCD* O-RING 9 X 1.8
34
*DISCD* SWITCH SPRING
35
*DISCD* SWITCH PIPE
36
O-RING 2.5 X 1.5 S3
Price
N/A
37
*DISCD* O-RING 20.3 X 2.3
38
*DISCD* SWITCH SEAT
39
ROLL PIN 3 X 25
Price
N/A
40
*DISCD* TRIGGER
Item is no longer available
Price
N/A
41
*DISCD* SAFETY SPACER
Item is no longer available
Price
N/A
42
ROLL PIN 3 X 16
Price
N/A
43
*DISCD* SAFETY GUIDE
Item is no longer available
Price
N/A
44
*DISCD* COMPRESSION SPRING
45
*DISCD* SAFETY YOKE
Item is no longer available
Price
N/A
46
CAP SCREW M5-.8 X 8
Price
N/A
47
Now: PW02M
FLAT WASHER 5MM
Price
N/A
48
*DISCD* SAFETY NOSE
Item is no longer available
Price
N/A
49
*DISCD* DEPTH ADJUSTMENT NUT
Item is no longer available
Price
N/A
50
*DISCD* COLLAR
51
*DISCD* SAFETY NOSE CASE
Item is no longer available
Price
N/A
52
*DISCD* O-RING 61.5 X 1.8
53
*DISCD* DRIVE GUIDE
Item is no longer available
Price
N/A
54
LOCK WASHER 8MM
Price
N/A
55
CAP SCREW M8-1.25 X 30
Price
N/A
56
E-CLIP 2.5MM
Price
N/A
57
*DISCD* PIN
58
CAP SCREW M6-1 X 12
Price
N/A
59
Now: PW03M
FLAT WASHER 6MM
Price
N/A
60
*DISCD* PLATE
Item is no longer available
Price
N/A
61
*DISCD* MAGAZINE
Item is no longer available
Price
N/A
62
*DISCD*WASHER CASE
Item is no longer available
Price
N/A
63
*DISCD* DRIVE NAIL BAR
64
*DISCD* SPACER
65
CAP SCREW M3-.5 X 5
Price
N/A
66
*DISCD* PUSHER
67
*DISCD* TORSION SPRING
Item is no longer available
Price
N/A
68
*DISCD* SPRING CORE
Item is no longer available
Price
N/A
69
*DISCD* PIN B4 X 25
Item is no longer available
Price
N/A
70
CAP SCREW M4-.7 X 10
Price
N/A
71
Now: PW05M
FLAT WASHER 4MM
Price
N/A
72
Now: PN04M
HEX NUT M4-.7
Price
N/A
73
*DISCD* RELEASE LATCH
Item is no longer available
Price
N/A
74
*DISCD* LATCH SPRING
Item is no longer available
Price
N/A
75
CAP SCREW M4-.7 X 40
Price
N/A
76
*DISCD* SAFETY PIPE
Item is no longer available
Price
N/A
77
*DISCD* SAFETY PIPE CASE
Item is no longer available
Price
N/A
78
CAP SCREW M5-.8 X 14
Price
N/A
79
*DISCD* FIXED SEAT
Item is no longer available
Price
N/A
80
Now: PW02M
FLAT WASHER 5MM
Price
N/A
81
Now: PN06M
HEX NUT M5-.8
Price
N/A
82
CAP SCREW M5-.8 X 25
Price
N/A
83
*DISCD* RUBBER HANDLE CASE
Item is no longer available
Price
N/A
84
*DISCD* END CAP WASHER
Item is no longer available
Price
N/A
85
*DISCD* END CAP
Item is no longer available
Price
N/A
86
Now: PW02M
FLAT WASHER 5MM
Price
N/A
87
CAP SCREW M5-.8 X 20
Price
N/A
88
*DISCD* AIR PLUG 1/4" NPT MALE
Item is no longer available
Price
N/A
89
*DISCD* AIR PLUG DUST CAP
90
*DISCD* CARRYING CASE
91
HEX WRENCH 3MM
Price
N/A
92
HEX WRENCH 4MM
Price
N/A
93
HEX WRENCH 5MM
Price
N/A
94
HEX WRENCH 6MM
Price
N/A
95
*DISCD* PISTON REPAIR KIT
Item is no longer available
Price
N/A
96
*DISCD*O-RING REPAIR KIT
Price
N/A
MANUAL
MANUAL FOR H7665 07/05
