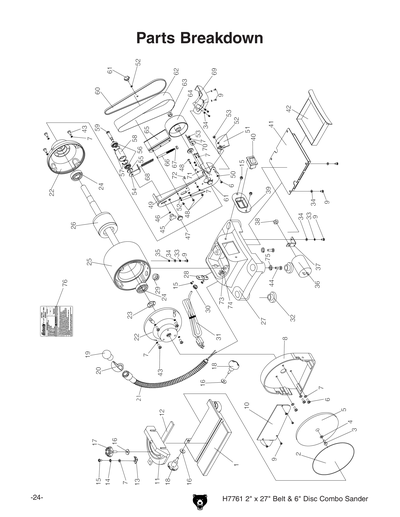

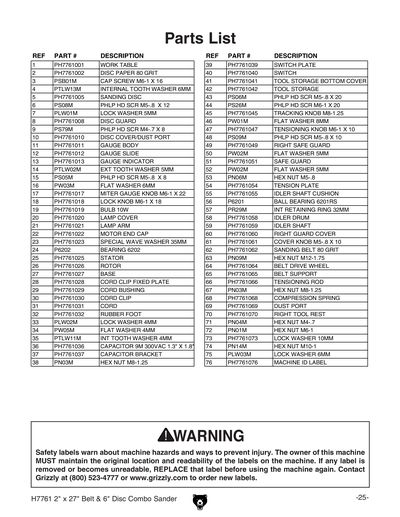

Parts for H7761 2" x 27" Belt/6" Disc Combo Sander

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
WORK TABLE
2
DISC PAPER 80 GRIT
3
CAP SCREW M6-1 X 16
Price
N/A
4
INT TOOTH WASHER 6MM
Price
N/A
5
SANDING DISC
5V2
SANDING DISC V2.12.24
6
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
7
LOCK WASHER 5MM
Price
N/A
8
DISC GUARD
9
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
10
DISC COVER/DUST PORT
11
GAUGE BODY
12
GAUGE SLIDE
13
GAUGE INDICATOR
14
EXT TOOTH WASHER 5MM
Price
N/A
15
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
16
Now: PW03M
FLAT WASHER 6MM
Price
N/A
17
MITER GAUGE KNOB M6-1 X 22
18
LOCK KNOB M6-1 X 18
19
BULB 10W
20
LAMP ARM W/ COVER
Price
N/A
21
LAMP ARM W/ COVER
22
MOTOR END CAP
23
WAVY WASHER 28MM
Price
N/A
24
BALL BEARING 6202ZZ
Price
N/A
25
STATOR
26
***SEE EXT DESC***
Item is no longer available
Price
N/A
26V2
ROTOR V2.12.24
27
BASE
28
CORD CLIP FIXED PLATE
29
CORD BUSHING
30
CORD CLIP
31
CORD
32
RUBBER FOOT
33
LOCK WASHER 4MM
Price
N/A
34
Now: PW05M
FLAT WASHER 4MM
Price
N/A
35
INT TOOTH WASHER 4MM
Price
N/A
36
CAPACITOR 10M 300V 2-1/4 X 1-3/8
37
CAPACITOR BRACKET
38
Now: PN03M
HEX NUT M8-1.25
Price
N/A
39
SWITCH PLATE
40
SWITCH
41
TOOL STORAGE BOTTOM COVER
42
TOOL STORAGE
43
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
44
Now: PS26M
PHLP HD SCR M6-1 X 20
Price
N/A
45
TRACKING KNOB M8-1.25
46
Now: PW01M
FLAT WASHER 8MM
Price
N/A
47
TENSIONING KNOB M6-1 X 10
48
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
49
SAFE GUARD RIGHT
50
Now: PW02M
FLAT WASHER 5MM
Price
N/A
51
SAFE GUARD
52
Now: PW02M
FLAT WASHER 5MM
Price
N/A
53
Now: PN06M
HEX NUT M5-.8
Price
N/A
54
TENSION PLATE
55
IDLER SHAFT CUSHION
56
BALL BEARING 6201ZZ
Price
N/A
57
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
58
IDLER DRUM
59
IDLER SHAFT
60
GUARD COVER RIGHT
61
COVER KNOB M5-.8 X 10
62
SANDING BELT #80
63
Now: PN09M
HEX NUT M12-1.75
Price
N/A
64
BELT DRIVE WHEEL
65
BELT SUPPORT
66
TENSIONING ROD
67
Now: PN03M
HEX NUT M8-1.25
Price
N/A
68
COMPRESSION SPRING
69
DUST PORT
70
TOOL REST RIGHT
71
Now: PN04M
HEX NUT M4-.7
Price
N/A
72
Now: PN01M
HEX NUT M6-1
Price
N/A
73
LOCK WASHER 10MM
Price
N/A
74
Now: PN14M
HEX NUT M10-1
Price
N/A
75
LOCK WASHER 6MM
Price
N/A
76
MACHINE ID LABEL
