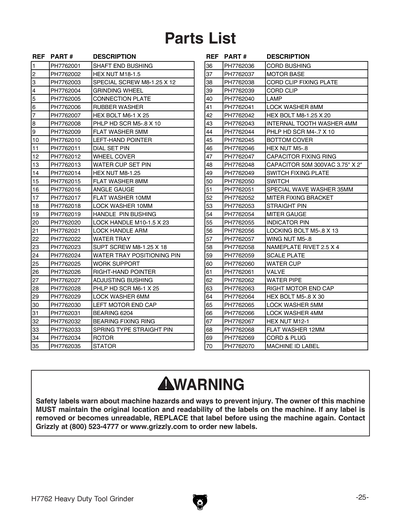

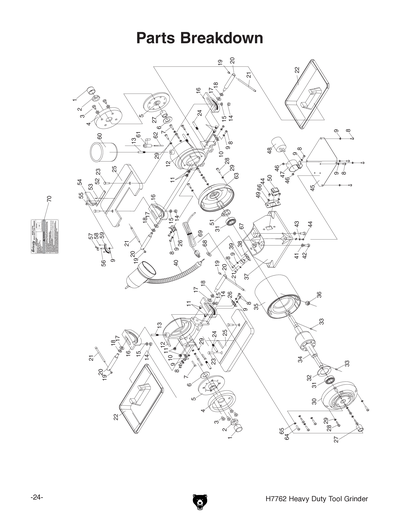

Parts for H7762 Heavy-Duty Tool Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
SHAFT END BUSHING
2
***USE PN15M***
3
GRINDING WHEEL SCREW M8-1.25 X 12
4
***USE T26661***
5
CONNECTION PLATE
6
RUBBER WASHER 24MM
7
***USE PB10M***
8
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
9
Now: PW02M
FLAT WASHER 5MM
Price
N/A
10
POINTER LH
11
DIAL SET PIN
12
WHEEL COVER
13
WATER CUP SET PIN
14
***USE PN03M***
15
Now: PW01M
FLAT WASHER 8MM
Price
N/A
16
ANGLE GAUGE
17
***USE PW04M***
18
***USE PLW06M***
19
***USE PH7762019A***
19A
LOCK HANDLE ASSEMBLY
20
***USE PH7762019A***
21
***USE PH7762019A***
22
WATER TRAY
23
SUPT SCREW M8-1.25 X 18
24
WATER TRAY POSITIONING PIN
25
WORK SUPPORT
26
POINTER RH
27
ADJUSTING BUSHING
28
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
29
***USE PLW03M***
30
MOTOR END CAP LEFT
31
***use P6204zz***
32
BEARING FIXING RING
33
SPRING TYPE STRAIGHT PIN
34
ROTOR
35
STATOR
36
CORD BUSHING
37
MOTOR BASE
38
CORD CLIP FIXING PLATE
39
CORD CLIP
40
LAMP
41
***USE PLW04M***
42
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
43
***USE PTLW11M***
44
***USE PS38M***
45
BOTTOM COVER
46
***USE PN06M***
47
CAPACITOR FIXING RING
48
R CAPACITOR 50M 300V 3-3/4 X 2
49
SWITCH FIXING PLATE
50
SWITCH
51
***USE PH7760023***
52
MITER FIXING BRACKET
53
STRAIGHT PIN
54
MITER GAUGE
55
INDICATOR PIN
56
LOCKBOLT M5-.8 X 13
57
WING NUT M5-.8
Price
N/A
58
***USE PRIV013M***
59
SCALE PLATE
60
WATER CUP
61
VALVE
62
WATER PIPE
63
MOTOR END CAP RIGHT
64
***USE PB93M***
65
***USE PLW01M ***
66
***USE PLW02M ***
67
Now: PN24M
HEX NUT M12-1.25
Price
N/A
68
***USE PW06M ***
69
CORD & PLUG
70
MACHINE ID LABEL
MAN
MANUAL H7762 MFD 08.05+ V1.11.05
