Parts for H7776 15 lb. Sausage Stuffer-Vertical

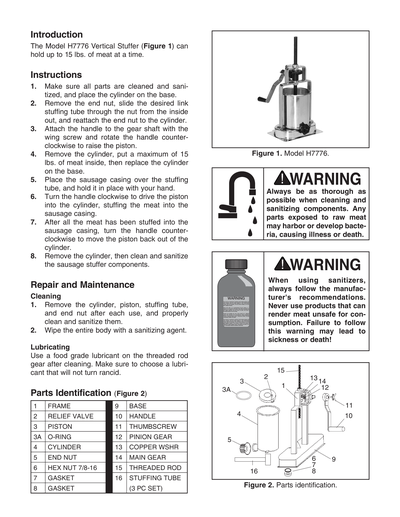

Parts Diagrams for H7776 - 15 lb. Sausage Stuffer-Vertical

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Parts List for Parts for H7776 15 lb. Sausage Stuffer-Vertical

1
*DISCD*FRAME
$129.05
Enter quantity between 1 and 99
2
*DISCD*RELIEF VALVE
Item is no longer available
Price
N/A
3
*DISCD*WHOLE PISTON
$27.90
Enter quantity between 1 and 99
3A
*DISCD*O-RING 150 X 7
Item is no longer available
Price
N/A
4
*DISCD*CYLINDER
Item is no longer available
Price
N/A
5
*DISCD*END NUT
Item is no longer available
Price
N/A
7
*DISCD*GASKET O-RING
$6.05
Enter quantity between 1 and 99
10
*DISCD*HANDLE
$12.95
Enter quantity between 1 and 99
12
*DISCD*PINION GEAR
$31.05
Enter quantity between 1 and 99
14
*DISCD*MAIN GEAR
$75.35
Enter quantity between 1 and 99
15
*DISCD*THREADED ROD
Item is no longer available
Price
N/A
16
*DISCD*STUFFING TUBE-3PC SET
Item is no longer available
Price
N/A
