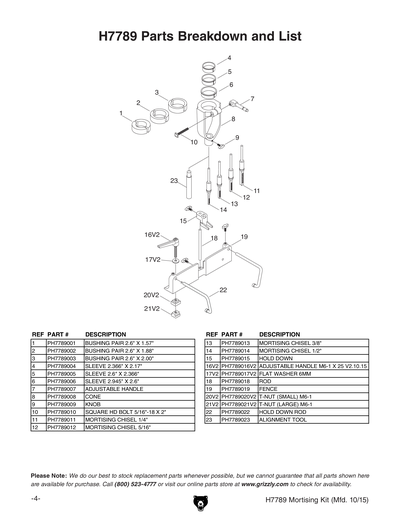

Parts for H7789 Mortising Attachment Kit for Drill Presses

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BUSHING PAIR 2.6" X 1.57"
2
BUSHING PAIR 2.6" X 1.88"
3
BUSHING PAIR 2.6" X 2.0"
4
SLEEVE 2.366" X 2.17"
5
SLEEVE 2.6" X 2.366"
6
SLEEVE 2.945" X 2.6"
7
ADJUSTABLE HANDLE
8
CONE
9
KNOB
10
SQUARE HD BOLT 5/16-18 X 2
11
Now: D2839
1/4" Mortising Chisel
Price
N/A
12
Now: D2840
5/16" Mortising Chisel
Price
N/A
13
Now: D2841
3/8" Mortising Chisel
Price
N/A
14
Now: D2842
1/2" Mortising Chisel
Price
N/A
15
HOLD DOWN
16
ADJUSTABLE HANDLE 5/16-18 X 2 V1
16V2
ADJUSTABLE HANDLE M6-1 X 25 V2.10.15
17
Now: PW07
FLAT WASHER 5/16
Price
N/A
18
ROD
19
FENCE
20
TEE NUT-SMALL
21
TEE NUT-LARGE
22
HOLD DOWN ROD
23
ALIGNMENT TOOL
