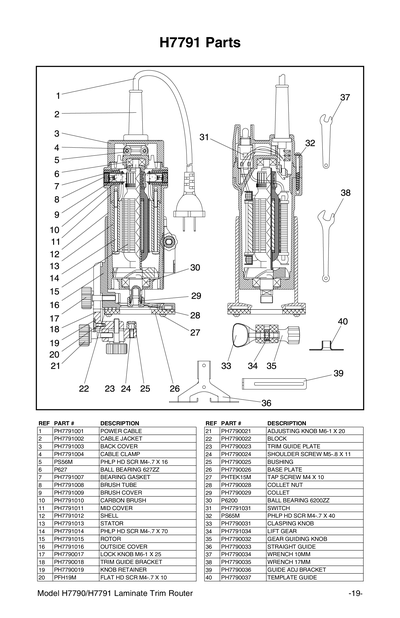

Parts for H7791 Trim Router, Hi Impact Plastic Body

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
*DISCD*POWER CABLE
Item is no longer available
Price
N/A
2
*DISCD*CABLE JACKET
Item is no longer available
Price
N/A
3
*DISCD*BACK COVER
Item is no longer available
Price
N/A
4
*DISCD*CABLE CLAMP
Item is no longer available
Price
N/A
5
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
6
BALL BEARING 627ZZ
Price
N/A
7
*DISCD*BEARING GASKET
8
*DISCD*BRUSH TUBE
9
*DISCD*BRUSH COVER
10
*DISCD*CARBON BRUSH (SET OF 2)
11
*DISCD*MID COVER
Item is no longer available
Price
N/A
12
*DISCD*SHELL
Item is no longer available
Price
N/A
13
*DISCD*STATOR
14
*DISCD*PHLP HD SCR M4-.7 X 70
Item is no longer available
Price
N/A
15
*DISCD*ROTOR
16
*DISCD*OUTSIDE COVER
17
*DISCD*LOCK KNOB M6-1 X 25
Item is no longer available
Price
N/A
18
*DISCD*TRIM GUIDE BRACKET
Item is no longer available
Price
N/A
19
*DISCD*KNOB RETAINER
Item is no longer available
Price
N/A
20
FLAT HD SCR M4-.7 X 10
Price
N/A
21
*DISCD*ADJUSTING KNOB M6-1 X 20
Item is no longer available
Price
N/A
22
*DISCD*BLOCK
Item is no longer available
Price
N/A
23
*DISCD*TRIM GUIDE PLATE
Item is no longer available
Price
N/A
24
*DISCD*SHOULDER SCREW M5-.8 X 11
Item is no longer available
Price
N/A
25
*DISCD*BUSHING
Item is no longer available
Price
N/A
26
*DISCD*BASE PLATE
Item is no longer available
Price
N/A
27
TAP SCREW M4 X 10
Price
N/A
28
*DISCD*COLLET NUT
Item is no longer available
Price
N/A
29
*DISCD*COLLET
Item is no longer available
Price
N/A
30
BALL BEARING 6200ZZ
Price
N/A
31
*DISCD*SWITCH
32
Now: PS65M
PHLP HD SCR M4-.7 X 40
Price
N/A
33
*DISCD*CLASPING KNOB
Item is no longer available
Price
N/A
34
*DISCD*LIFT GEAR
Item is no longer available
Price
N/A
35
*DISCD*GEAR GUIDING KNOB
Item is no longer available
Price
N/A
36
*DISCD*STRAIGHT GUIDE
Item is no longer available
Price
N/A
37
*DISCD*WRENCH 10MM
Item is no longer available
Price
N/A
38
*DISCD*WRENCH 17MM
Item is no longer available
Price
N/A
39
*DISCD*GUIDE ADJ BRACKET
Item is no longer available
Price
N/A
40
*DISCD*TEMPLATE GUIDE
Price
N/A
MAN
H7790-91 MANUAL V1.11.05 MFD 11.05-02.18
Price
N/A
MANV2
H7790-91 MANUAL V2.03.18 MFD 03.18+
Price
N/A
