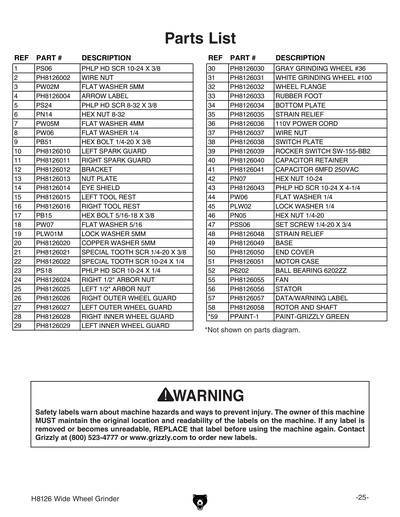

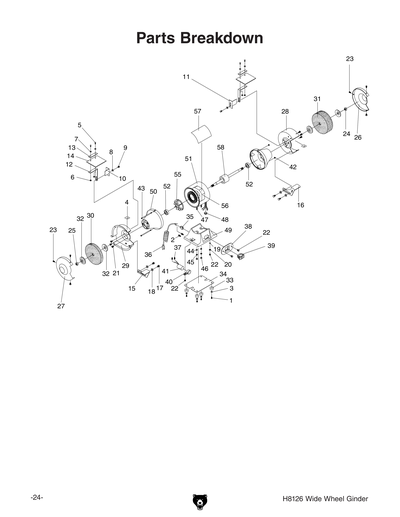

Parts for H8126 Wide Wheel Bench Grinder

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
2
WIRE NUT P1
Item is no longer available
Price
N/A
3
Now: PW02M
FLAT WASHER 5MM
Price
N/A
4
ARROW LABEL
Item is no longer available
Price
N/A
5
Now: PS24
PHLP HD SCR 8-32 X 3/8
Price
N/A
6
Now: PN14
HEX NUT 8-32
Price
N/A
7
Now: PW05M
FLAT WASHER 4MM
Price
N/A
8
Now: PW06
FLAT WASHER 1/4
Price
N/A
9
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
10
SPARK GUARD LEFT
Item is no longer available
Price
N/A
11
SPARK GUARD RIGHT
Item is no longer available
Price
N/A
12
BRACKET
Item is no longer available
Price
N/A
13
NUT PLATE
Item is no longer available
Price
N/A
14
EYE SHIELD
Item is no longer available
Price
N/A
15
TOOL REST LEFT
Item is no longer available
Price
N/A
16
TOOL REST RIGHT
Item is no longer available
Price
N/A
17
Now: PB15
HEX BOLT 5/16-18 X 3/8
Price
N/A
18
Now: PW07
FLAT WASHER 5/16
Price
N/A
19
LOCK WASHER 5MM
Price
N/A
20
Now: PW07M
FLAT WASHER 3MM
Price
N/A
21
WHEEL GUARD TOOTH SCR 1/4-20 X 3/8
Item is no longer available
Price
N/A
22
CAPACITOR RETAINER TOOTH SCR 10-24 X 1/4
Item is no longer available
Price
N/A
23
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
24
ARBOR NUT 1/2" RIGHT
Item is no longer available
Price
N/A
25
ARBOR NUT 1/2" LEFT
Item is no longer available
Price
N/A
26
OUTER WHEEL GUARD RIGHT
Item is no longer available
Price
N/A
27
OUTER WHEEL GUARD LEFT
Item is no longer available
Price
N/A
28
INNER WHEEL GUARD RIGHT
29
INNER WHEEL GUARD LEFT
Item is no longer available
Price
N/A
30
GRAY GRINDING WHEEL #36
Item is no longer available
Price
N/A
31
WHITE GRINDING WHEEL #100
32
WHEEL FLANGE 12.7 X T2.5MM
Item is no longer available
Price
N/A
33
RUBBER FOOT
Item is no longer available
Price
N/A
34
BOTTOM PLATE
Item is no longer available
Price
N/A
35
GROMMET M3
Item is no longer available
Price
N/A
36
POWER CORD 110V
Item is no longer available
Price
N/A
37
WIRE NUT
Item is no longer available
Price
N/A
38
SWITCH PLATE
Item is no longer available
Price
N/A
39
ROCKER SWITCH SW-155-BB2
Item is no longer available
Price
N/A
40
CAPACITOR RETAINER
Item is no longer available
Price
N/A
41
R CAPACITOR 6M 250V 1-1/16 X 1-9/16
Item is no longer available
Price
N/A
42
Now: PN07
HEX NUT 10-24
Price
N/A
43
PHLP HD SCR 10-24 X 4-1/4
Item is no longer available
Price
N/A
44
Now: PW06
FLAT WASHER 1/4
Price
N/A
45
Now: PLW02
LOCK WASHER 1/4
Price
N/A
46
Now: PN05
HEX NUT 1/4-20
Price
N/A
47
Now: PSS06
SET SCREW 1/4-20 X 3/4
Price
N/A
48
GROMMET M2 TYPE-1 PUSH-IN
Item is no longer available
Price
N/A
49
BASE
Item is no longer available
Price
N/A
50
END COVER
Item is no longer available
Price
N/A
51
MOTOR CASE
Item is no longer available
Price
N/A
52
BALL BEARING 6001ZZ
Price
N/A
55
FAN
Item is no longer available
Price
N/A
56
STATOR
Item is no longer available
Price
N/A
57
DATA/WARNING LABEL
Item is no longer available
Price
N/A
58
ROTOR AND SHAFT
Item is no longer available
Price
N/A
59
N/S GRIZZLY GREEN G1023S
Price
N/A
