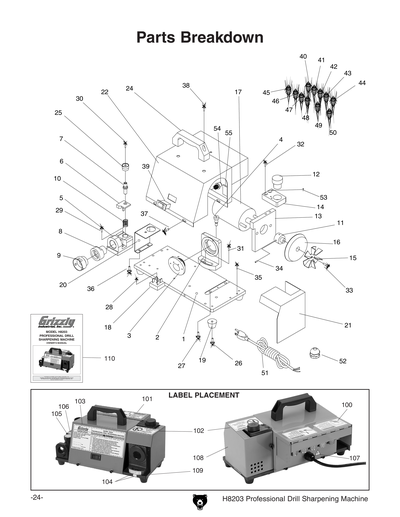

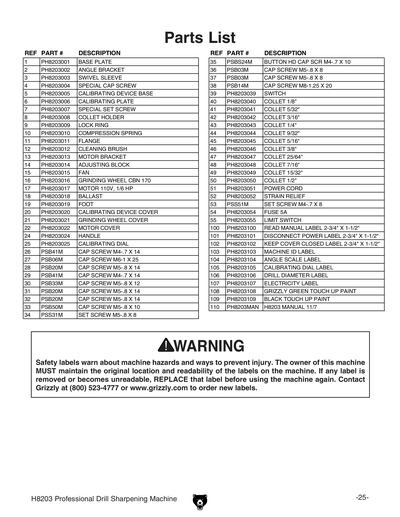

Parts for H8203 Professional Drill Bit Sharpening Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
BASE PLATE
2
ANGLE BRACKET
3
SWIVEL SLEEVE
4
ANGLE BRACKET CAP SCREW
5
CALIBRATING DEVICE BASE
6
CALIBRATING PLATE
7
CALIBRATING DIAL SET SCREW
8
COLLET HOLDER W/LOCK RING
9
COLLET HOLDER W/LOCK RING
Price
N/A
10
COMPRESSION SPRING
11
FLANGE
12
CLEANING BRUSH
13
MOTOR BRACKET
14
ADJUSTING BLOCK
15
FAN
16
GRINDING WHEEL CBN 170
17
MOTOR 1/6HP 110V 1-PH
18
BALLAST
19
FOOT
20
CALIBRATING DEVICE COVER
21
GRINDING WHEEL COVER
22
MOTOR COVER
24
HANDLE
25
CALIBRATING DIAL
26
CAP SCREW M4-.7 X 14
Price
N/A
27
CAP SCREW M6-1 X 25
Price
N/A
28
CAP SCREW M5-.8 X 14
Price
N/A
29
CAP SCREW M4-.7 X 14
Price
N/A
30
CAP SCREW M5-.8 X 12
Price
N/A
31
CAP SCREW M5-.8 X 14
Price
N/A
32
CAP SCREW M5-.8 X 14
Price
N/A
33
CAP SCREW M5-.8 X 10
Price
N/A
34
SET SCREW M5-.8 X 8
Price
N/A
35
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
36
CAP SCREW M5-.8 X 8
Price
N/A
37
CAP SCREW M5-.8 X 8
Price
N/A
38
CAP SCREW M8-1.25 X 20
Price
N/A
39
SWITCH 110V-250V JOEMEX
40
COLLET 1/8"
41
COLLET 5/32"
42
COLLET 3/16"
43
COLLET 1/4"
44
COLLET 9/32"
45
COLLET 5/16"
46
COLLET 3/8"
47
COLLET 25/64"
48
COLLET 7/16"
49
COLLET 15/32"
50
COLLET 1/2"
51
POWER CORD
52
STRAIN RELIEF
53
SET SCREW M4-.7 X 8
Price
N/A
54
FUSE 5A
55
LIMIT SWITCH
100
READ MANUAL LABEL 2-3/4 X 1-1/2"
101
DISCONNECT POWER LABEL 2-3/4" X 1-1/2"
102
KEEP COVER CLOSED LABEL 2-3/4 X 1-1/2"
103
MACHINE ID LABEL
104
ANGLE SCALE LABEL
105
CALIBRATING DIAL LABEL
106
DRILL DIAMETER LABEL
107
ELECTRICITY LABEL
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
GLOSSY BLACK
Price
N/A
MAN
MANUAL FOR H8203 11/07
