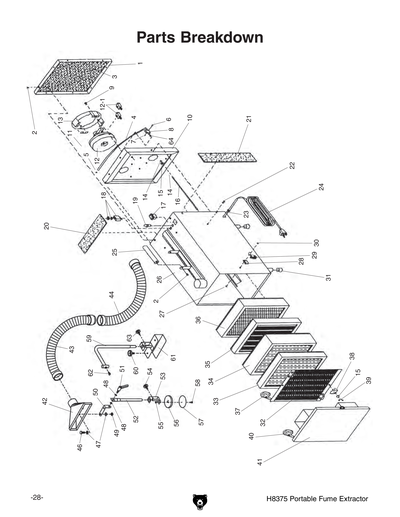

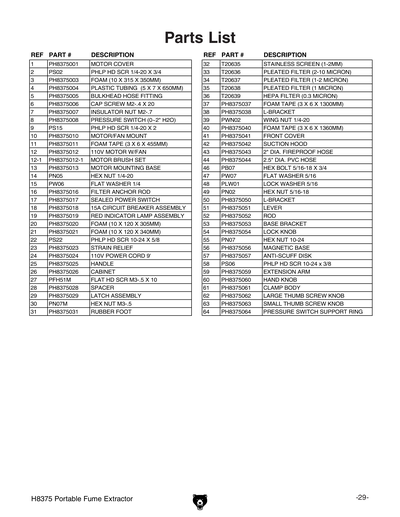

Parts for H8375 Portable Fume Extractor

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
MOTOR COVER
2
Now: PS02
PHLP HD SCR 1/4-20 X 3/4
Price
N/A
3
FOAM 10 X 315 X 350MM
4
PLASTIC TUBING 5 X 7 X 650MM
5
BULKHEAD HOSE FITTING
6
CAP SCREW M2-.4 X 20
7
INSULATOR NUT M2-.7
8
PRESSURE SWITCH 0~2" H2O
9
Now: PS15
PHLP HD SCR 1/4-20 X 2
Price
N/A
10
MOTOR/FAN MOUNT
11
FOAM TAPE 3 X 6 X 455MM
12
110V MOTOR W/FAN
12-1
MOTOR BRUSH SET
13
MOTOR MOUNTING BASE
14
Now: PN05
HEX NUT 1/4-20
Price
N/A
15
Now: PW06
FLAT WASHER 1/4
Price
N/A
16
FILTER ANCHOR ROD
17
SEALED POWER SWITCH
18
CIRCUIT BREAKER 15A ZING EAR ZE-700-15 1
Price
N/A
19
RED INDICATOR LAMP ASSEMBLY
20
FOAM 10 X 120 X 305MM
21
FOAM 10 X 120 X 340MM
22
Now: PS22
PHLP HD SCR 10-24 X 5/8
Price
N/A
23
STRAIN RELIEF
24
110V POWER CORD 9'
25
HANDLE
26
CABINET
27
FLAT HD SCR M3-.5 X 10
Price
N/A
28
SPACER
29
LATCH ASSEMBLY
30
Now: PN07M
HEX NUT M3-.5
Price
N/A
31
RUBBER FOOT
32
Stainless Screen 1-2mm for H8375
Price
N/A
33
Pleated Filter 2-10 Micron for H8375
Price
N/A
34
Pleated Filter 1-2 Micron for H8375
Price
N/A
35
Pleated Filter 1 Micron for H8375
Price
N/A
36
HEPA Filter 0.3 Micron for H8375
Price
N/A
37
FOAM TAPE 3 X 6 X 1300MM
38
L-BRACKET
39
Now: PWN02
WING NUT 1/4-20
Price
N/A
40
FOAM TAPE 3 X 6 X 1360MM
41
FRONT COVER
42
SUCTION HOOD
43
2" DIA. FIREPROOF HOSE
44
2.5" DIA. PVC HOSE
46
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
47
Now: PW07
FLAT WASHER 5/16
Price
N/A
48
Now: PLW01
LOCK WASHER 5/16
Price
N/A
49
Now: PN02
HEX NUT 5/16-18
Price
N/A
50
L-BRACKET
51
LEVER
52
ROD
53
BASE BRACKET
54
LOCK KNOB
55
Now: PN07
HEX NUT 10-24
Price
N/A
56
MAGNETIC BASE W/ ANTI-SCUFF DISK
57
MAGNETIC BASE W/ ANTI-SCUFF DISK
Price
N/A
58
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
59
EXTENSION ARM
60
HAND KNOB
61
CLAMP BODY
62
LARGE THUMB SCREW KNOB
63
SMALL THUMB SCREW KNOB
64
PRESSURE SWITCH SUPPORT RING

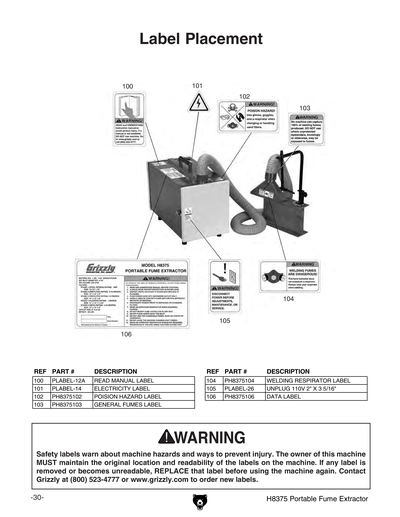

100
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
101
ELECTRICITY 1.4W X 1.2H
Price
N/A
102
POISION HAZARD LABEL
103
GENERAL FUMES LABEL
104
WELDING RESPIRATOR LABEL
105
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
106
DATA LABEL
107
MANUAL FOR H8375 02/08
Price
N/A
MAN
MANUAL FOR H8375 02/08
